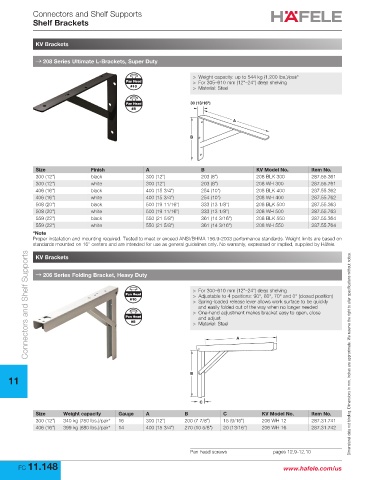

Connectors and Shelf Supports
Shelf Brackets

KV Brackets

→ 208 Series Ultimate L-Brackets, Super Duty

> Weight capacity: up to 544 kg (1,200 lbs.)/pair*
Pan Head > For 305–610 mm (12"–24") deep shelving
#10 > Material: Steel

Pan Head 30 (13/16")
#8
A

B

Size Finish A B KV Model No. Item No.
300 (12") black 300 (12") 203 (8") 208 BLK 300 287.55.361
300 (12") white 300 (12") 203 (8") 208 WH 300 287.55.761
406 (16") black 400 (15 3/4") 254 (10") 208 BLK 400 287.55.362
406 (16") white 400 (15 3/4") 254 (10") 208 WH 400 287.55.762
508 (20") black 500 (19 11/16") 333 (13 1/8") 208 BLK 500 287.55.363
508 (20") white 500 (19 11/16") 333 (13 1/8") 208 WH 500 287.55.763
559 (22") black 550 (21 5/8") 361 (14 3/16") 208 BLK 550 287.55.364
559 (22") white 550 (21 5/8") 361 (14 3/16") 208 WH 550 287.55.764
*Note
Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on
standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.
Connectors and Shelf Supports
KV Brackets

→ 206 Series Folding Bracket, Heavy Duty

> For 300–610 mm (12"–24") deep shelving
Pan Head > Adjustable to 4 positions: 90°, 80°, 70° and 0° (closed position)
#10
> Spring-loaded release lever allows work surface to be quickly
and easily folded out of the way when no longer needed
> One-hand adjustment makes bracket easy to open, close
Pan Head and adjust
#8 > Material: Steel
A Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

B
11

C
Size Weight capacity Gauge A B C KV Model No. Item No.
300 (12") 340 kg (750 lbs.)/pair* 16 300 (12") 200 (7 7/8") 15 (9/16") 206 WH 12 287.31.741
406 (16") 399 kg (880 lbs.)/pair* 14 400 (15 3/4") 270 (10 5/8") 20 (13/16") 206 WH 16 287.31.742

Pan head screws pages 12.9-12.10
FC 11.148 www.hafele.com/us
