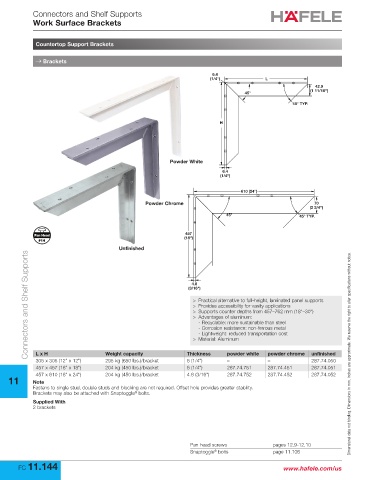

Connectors and Shelf Supports
Work Surface Brackets

Countertop Support Brackets

→ Brackets

6.4
(1/4") L
42.9
(1 11/16")
45°
45° TYP.

H

Powder White
6.4
(1/4")

610 (24")

Powder Chrome 70
(2 3/4")
45° 45° TYP.

457
Pan Head (18")
#14
Unfinished
Connectors and Shelf Supports

4.8
(3/16")

> Practical alternative to full-height, laminated panel supports
> Provides accessibility for vanity applications
> Supports counter depths from 457–762 mm (18"–30")
> Advantages of aluminum:
- Recyclable: more sustainable than steel
- Corrosion resistance: non-ferrous metal
- Lightweight: reduced transportation cost
> Material: Aluminum

L x H Weight capacity Thickness powder white powder chrome unfinished Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
305 x 305 (12" x 12") 295 kg (650 lbs.)/bracket 6 (1/4") – – 287.74.050
457 x 457 (18" x 18") 204 kg (450 lbs.)/bracket 6 (1/4") 287.74.751 287.74.451 287.74.051
457 x 610 (18" x 24") 204 kg (450 lbs.)/bracket 4.8 (3/16") 287.74.752 287.74.452 287.74.052
11 Note
Fastens to single stud, double studs and blocking are not required. Offset hole provides greater stability.
Brackets may also be attached with Snaptoggle bolts.
®
Supplied With
2 brackets

Pan head screws pages 12.9-12.10
Snaptoggle bolts page 11.106
®
FC 11.144 www.hafele.com/us
