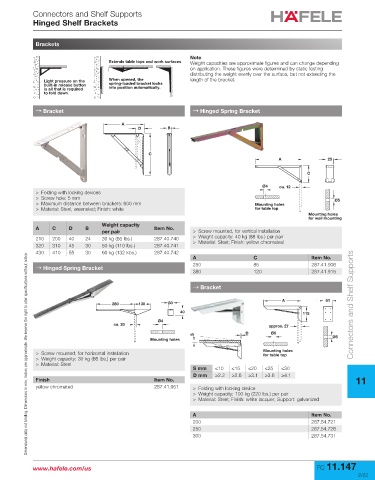

Connectors and Shelf Supports
Hinged Shelf Brackets

Brackets

Note
Extends table tops and work surfaces Weight capacities are approximate figures and can change depending
on application. These figures were determined by static testing
distributing the weight evenly over the surface, but not extending the
Light pressure on the When opened, the length of the bracket.
built-in release button spring-loaded bracket locks
is all that is required into position automatically.
to fold down.

→ Bracket → Hinged Spring Bracket

A
D B

C
A 25

C
Ø4 ca. 12
> Folding with locking devices
> Screw hole: 5 mm Ø5
> Maximum distance between brackets: 600 mm Mounting holes
> Material: Steel, enameled; Finish: white for table top
Mounting holes
for wall mounting
Weight capacity
A C D B Item No.
per pair > Screw mounted, for vertical installation
210 200 40 24 30 kg (66 lbs.) 287.40.740 > Weight capacity: 40 kg (88 lbs.) per pair
> Material: Steel; Finish: yellow chromated
320 310 45 30 50 kg (110 lbs.) 287.40.741
430 410 55 30 60 kg (132 kbs.) 287.40.742
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
A C Item No.
250 85 287.41.906
→ Hinged Spring Bracket
380 120 287.41.915
→ Bracket

A 61
280 130 30 Connectors and Shelf Supports
40 115
Ø4
ca. 20 approx. 27
Ø5
Mounting holes Ø5
> Screw mounted, for horizontal installation Mounting holes
for table top
> Weight capacity: 30 kg (66 lbs.) per pair
> Material: Steel
S mm ≤10 ≤15 ≤20 ≤25 ≤30
D mm ≥2.2 ≥2.6 ≥3.1 ≥3.6 ≥4.1
Finish Item No. 11
yellow chromated 287.41.951 > Folding with locking device
> Weight capacity: 100 kg (220 lbs.) per pair
> Material: Steel; Finish: white lacquer; Support: galvanized

A Item No.
200 287.54.721
250 287.54.726
300 287.54.731
