Consumables and Tools
Screws

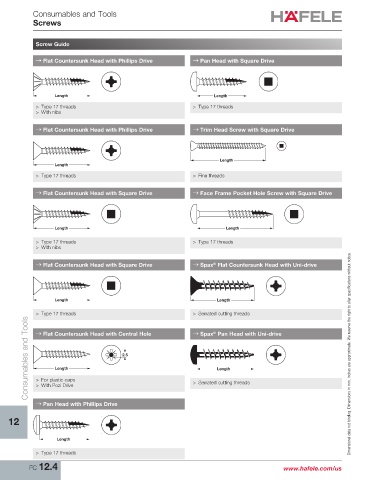

Screw Guide
→ Flat Countersunk Head with Phillips Drive → Pan Head with Square Drive
Length Length
> Type 17 threads > Type 17 threads
> With nibs
→ Flat Countersunk Head with Phillips Drive → Trim Head Screw with Square Drive
Length
Length
> Type 17 threads > Fine threads
→ Flat Countersunk Head with Square Drive → Face Frame Pocket Hole Screw with Square Drive
Length Length
> Type 17 threads > Type 17 threads
> With nibs
→ Flat Countersunk Head with Square Drive → Spax Flat Countersunk Head with Uni-drive
®
Length Length
> Type 17 threads > Serrated cutting threads
Consumables and Tools > For plastic caps 2.5 Length Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Spax Pan Head with Uni-drive
→ Flat Countersunk Head with Central Hole
®
Length
> With Pozi Drive
→ Pan Head with Phillips Drive > Serrated cutting threads
12
Length
> Type 17 threads
FC 12.4 www.hafele.com/us
