Consumables and Tools
Screws

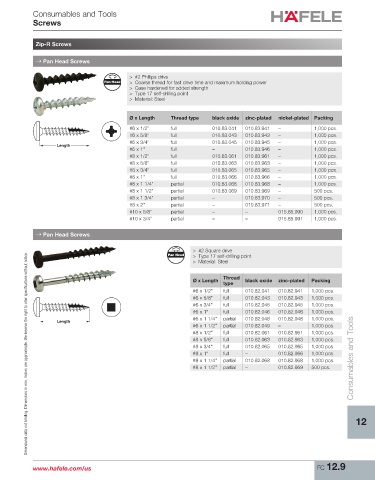

Zip-R Screws

→ Pan Head Screws

> #2 Phillips drive
Pan Head > Coarse thread for fast drive time and maximum holding power
> Case hardened for added strength
> Type 17 self-drilling point
> Material: Steel

Ø x Length Thread type black oxide zinc-plated nickel-plated Packing

#6 x 1/2" full 010.83.041 010.83.941 – 1,000 pcs.
#6 x 5/8" full 010.83.043 010.83.943 – 1,000 pcs.
#6 x 3/4" full 010.83.045 010.83.945 – 1,000 pcs.
Length
#6 x 1" full – 010.83.946 – 1,000 pcs.
#8 x 1/2" full 010.83.061 010.83.961 – 1,000 pcs.
#8 x 5/8" full 010.83.063 010.83.963 – 1,000 pcs.
#8 x 3/4" full 010.83.065 010.83.965 – 1,000 pcs.
#8 x 1" full 010.83.066 010.83.966 – 1,000 pcs.
#8 x 1 1/4" partial 010.83.068 010.83.968 – 1,000 pcs.
#8 x 1 1/2" partial 010.83.069 010.83.969 – 500 pcs.
#8 x 1 3/4" partial – 010.83.970 – 500 pcs.
#8 x 2" partial – 010.83.971 – 500 pcs.
#10 x 5/8" partial – – 015.85.990 1,000 pcs.
#10 x 3/4" partial – – 015.85.991 1,000 pcs.

→ Pan Head Screws

> #2 Square drive
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pan Head > Type 17 self-drilling point
> Material: Steel

Thread
Ø x Length black oxide zinc-plated Packing
type
#6 x 1/2" full 010.82.041 010.82.941 1,000 pcs.
#6 x 5/8" full 010.82.043 010.82.943 1,000 pcs.
#6 x 3/4" full 010.82.045 010.82.945 1,000 pcs.
#6 x 1" full 010.82.046 010.82.946 1,000 pcs.
#6 x 1 1/4" partial 010.82.048 010.82.948 1,000 pcs.
Length
#6 x 1 1/2" partial 010.82.049 – 1,000 pcs.
#8 x 1/2" full 010.82.061 010.82.961 1,000 pcs.
#8 x 5/8" full 010.82.063 010.82.963 1,000 pcs.
#8 x 3/4" full 010.82.065 010.82.965 1,000 pcs.
#8 x 1" full – 010.82.966 1,000 pcs.
#8 x 1 1/4" partial 010.82.068 010.82.968 1,000 pcs. Consumables and Tools
#8 x 1 1/2" partial – 010.82.969 500 pcs.

12

www.hafele.com/us FC 12.9
