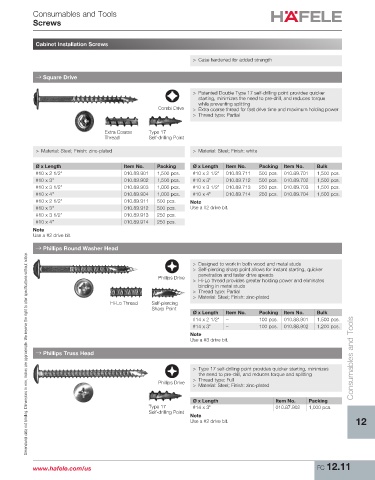

Page 1339 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Consumables and Tools
Screws

Cabinet Installation Screws

> Case hardened for added strength

→ Square Drive

> Patented Double Type 17 self-drilling point provides quicker
starting, minimizes the need to pre-drill, and reduces torque
Combo Drive
Combi Drive while preventing splitting
> Extra coarse thread for fast drive time and maximum holding power
> Thread type: Partial
Extra Coarse Type 17
Thread Self-drilling Point

> Material: Steel; Finish: zinc-plated > Material: Steel; Finish: white

Ø x Length Item No. Packing Ø x Length Item No. Packing Item No. Bulk
#10 x 2 1/2" 010.89.901 1,500 pcs. #10 x 2 1/2" 010.89.711 500 pcs. 010.89.701 1,500 pcs.
#10 x 3" 010.89.902 1,500 pcs. #10 x 3" 010.89.712 500 pcs. 010.89.702 1,500 pcs.
#10 x 3 1/2" 010.89.903 1,000 pcs. #10 x 3 1/2" 010.89.713 250 pcs. 010.89.703 1,500 pcs.
#10 x 4" 010.89.904 1,000 pcs. #10 x 4" 010.89.714 250 pcs. 010.89.704 1,500 pcs.
#10 x 2 1/2" 010.89.911 500 pcs. Note
#10 x 3" 010.89.912 500 pcs. Use a #2 drive bit.
#10 x 3 1/2" 010.89.913 250 pcs.
#10 x 4" 010.89.914 250 pcs.
Note
Use a #2 drive bit.

→ Phillips Round Washer Head
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Designed to work in both wood and metal studs
> Self-piercing sharp point allows for instant starting, quicker
penetration and faster drive speeds
Phillips Drive > Hi-Lo thread provides greater holding power and eliminates
binding in metal studs
> Thread type: Partial
> Material: Steel; Finish: zinc-plated
Hi-Lo Thread Self-piercing
Sharp Point
Ø x Length Item No. Packing Item No. Bulk
#14 x 2 1/2" – 100 pcs. 010.88.901 1,500 pcs.
#14 x 3" – 100 pcs. 010.88.902 1,200 pcs.
Note
Use a #3 drive bit.
→ Phillips Truss Head Consumables and Tools

> Type 17 self-drilling point provides quicker starting, minimizes
the need to pre-drill, and reduces torque and splitting
> Thread type: Full
Phillips Drive > Material: Steel; Finish: zinc-plated

Ø x Length Item No. Packing
Type 17 #14 x 3" 010.87.902 1,000 pcs.
Self-drilling Point
Note
Use a #2 drive bit. 12

www.hafele.com/us FC 12.11
