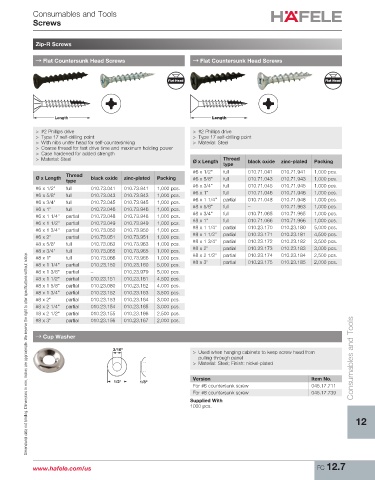

Page 1335 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Consumables and Tools
Screws

Zip-R Screws

→ Flat Countersunk Head Screws → Flat Countersunk Head Screws

Flat Head Flat Head

Length Length
> #2 Phillips drive > #2 Phillips drive
> Type 17 self-drilling point > Type 17 self-drilling point
> With nibs under head for self-countersinking > Material: Steel
> Coarse thread for fast drive time and maximum holding power
> Case hardened for added strength
> Material: Steel Ø x Length Thread black oxide zinc-plated Packing
type
#6 x 1/2" full 010.71.041 010.71.941 1,000 pcs.
Ø x Length Thread black oxide zinc-plated Packing #6 x 5/8" full 010.71.043 010.71.943 1,000 pcs.
type
#6 x 1/2" full 010.73.041 010.73.941 1,000 pcs. #6 x 3/4" full 010.71.045 010.71.945 1,000 pcs.
#6 x 5/8" full 010.73.043 010.73.943 1,000 pcs. #6 x 1" full 010.71.046 010.71.946 1,000 pcs.
#6 x 3/4" full 010.73.045 010.73.945 1,000 pcs. #6 x 1 1/4" partial 010.71.048 010.71.948 1,000 pcs.
#6 x 1" full 010.73.046 010.73.946 1,000 pcs. #8 x 5/8" full – 010.71.963 1,000 pcs.
#6 x 1 1/4" partial 010.73.048 010.73.948 1,000 pcs. #8 x 3/4" full 010.71.065 010.71.965 1,000 pcs.
#6 x 1 1/2" partial 010.73.049 010.73.949 1,000 pcs. #8 x 1" full 010.71.066 010.71.966 1,000 pcs.
#6 x 1 3/4" partial 010.73.050 010.73.950 1,000 pcs. #8 x 1 1/4" partial 010.23.170 010.23.180 5,000 pcs.
#6 x 2" partial 010.73.051 010.73.951 1,000 pcs. #8 x 1 1/2" partial 010.23.171 010.23.181 4,500 pcs.
#8 x 5/8" full 010.73.063 010.73.963 1,000 pcs. #8 x 1 3/4" partial 010.23.172 010.23.182 3,500 pcs.
#8 x 3/4" full 010.73.065 010.73.965 1,000 pcs. #8 x 2" partial 010.23.173 010.23.183 3,000 pcs.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
#8 x 1" full 010.73.066 010.73.966 1,000 pcs. #8 x 2 1/2" partial 010.23.174 010.23.184 2,500 pcs.
#8 x 1 1/4" partial 010.23.150 010.23.160 5,000 pcs. #8 x 3" partial 010.23.175 010.23.185 2,000 pcs.
#8 x 1 3/8" partial – 010.23.979 5,000 pcs.
#8 x 1 1/2" partial 010.23.151 010.23.161 4,500 pcs.
#8 x 1 5/8" partial 010.23.080 010.23.162 4,000 pcs.
#8 x 1 3/4" partial 010.23.152 010.23.163 3,500 pcs.
#8 x 2" partial 010.23.153 010.23.164 3,000 pcs.
#8 x 2 1/4" partial 010.23.154 010.23.165 3,000 pcs.
#8 x 2 1/2" partial 010.23.155 010.23.166 2,500 pcs.
#8 x 3" partial 010.23.156 010.23.167 2,000 pcs.

→ Cup Washer

3/16" > Used when hanging cabinets to keep screw head from
pulling through panel Consumables and Tools
> Material: Steel; Finish: nickel-plated

Version Item No.
1/2" 1/8"
For #6 countersunk screw 045.17.711
For #8 countersunk screw 045.17.739
Supplied With
1000 pcs.

12

www.hafele.com/us FC 12.7
