Consumables and Tools
Screws

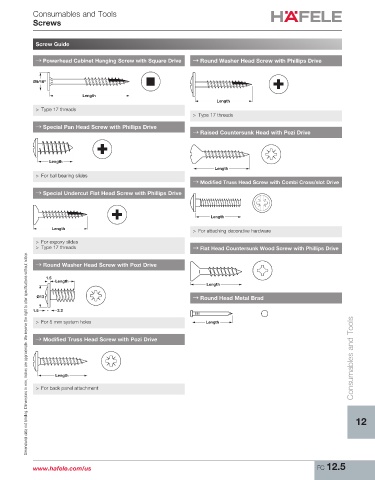

Screw Guide

→ Powerhead Cabinet Hanging Screw with Square Drive → Round Washer Head Screw with Phillips Drive

Ø9/16"

Length
Length
> Type 17 threads
> Type 17 threads
→ Special Pan Head Screw with Phillips Drive
→ Raised Countersunk Head with Pozi Drive

Length
Length
> For ball bearing slides
→ Modified Truss Head Screw with Combi Cross/slot Drive

→ Special Undercut Flat Head Screw with Phillips Drive

Length
Length > For attaching decorative hardware

> For expoxy slides
> Type 17 threads → Flat Head Countersunk Wood Screw with Phillips Drive
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Round Washer Head Screw with Pozi Drive

1.5
Length
Length
Ø13 → Round Head Metal Brad

1.5 2.2
Consumables and Tools
> For 5 mm system holes Length

→ Modified Truss Head Screw with Pozi Drive

Length
> For back panel attachment

12

www.hafele.com/us FC 12.5
