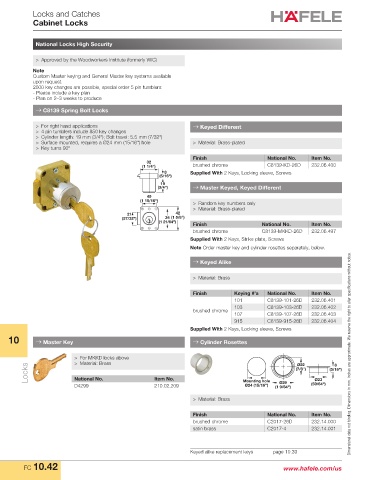

Page 1064 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

National Locks High Security

> Approved by the Woodworkers Institute (formerly WIC)
Note
Custom Master keying and General Master key systems available
upon request.
2000 key changes are possible, special order 5 pin tumblers:
- Please include a key plan
- Plan on 2–3 weeks to produce

→ C8139 Spring Bolt Locks

> For right hand applications → Keyed Different
> 4 pin tumblers include 850 key changes
> Cylinder length: 19 mm (3/4"); Bolt travel: 5.5 mm (7/32")
> Surface mounted, requires a Ø24 mm (15/16") hole > Material: Brass-plated
> Key turns 90º
Finish National No. Item No.
32
(1 1/4") brushed chrome C8139-KD-26D 232.06.400
8 Supplied With 2 Keys, Locking sleeve, Screws
(5/16")
19
(3/4") → Master Keyed, Keyed Different
49
(1 15/16") > Random key numbers only
> Material: Brass-plated
21 42
(27/32") 34 (1 5/8")
(1 21/64")
Finish National No. Item No.
brushed chrome C8139-MKKD-26D 232.06.497
Supplied With 2 Keys, Strike plate, Screws
Note Order master key and cylinder rosettes separately, below.

→ Keyed Alike

> Material: Brass

Finish Keying #’s National No. Item No.
101 C8139-101-26D 232.06.401
103 C8139-103-26D 232.06.402
brushed chrome
107 C8139-107-26D 232.06.403
915 C8139-915-26D 232.06.404
Supplied With 2 Keys, Locking sleeve, Screws
10 → Master Key → Cylinder Rosettes

> For MKKD locks above Ø22 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Brass
8
Locks National No. Item No. (7/8") Ø23 (5/16")

Ø29
Ø24 (15/16")
D4299 210.02.209 Mounting hole (1 9/64") (59/64")
> Material: Brass

Finish National No. Item No.
brushed chrome C2017-26D 232.14.000
satin brass C2017-4 232.14.001

Keyed alike replacement keys page 10.39
FC 10.42 www.hafele.com/us
