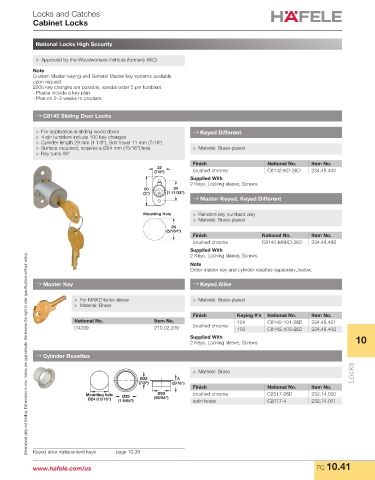

Page 1063 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

National Locks High Security

> Approved by the Woodworkers Institute (formerly WIC)
Note
Custom Master keying and General Master key systems available
upon request.
2000 key changes are possible, special order 5 pin tumblers:
- Please include a key plan
- Plan on 2–3 weeks to produce

→ C8142 Sliding Door Locks

> For application in sliding wood doors → Keyed Different
> 4 pin tumblers include 100 key changes
> Cylinder length 29 mm (1 1/8"), Bolt travel 11 mm (7/16")
> Surface mounted, requires a Ø24 mm (15/16") hole > Material: Brass-plated
> Key turns 90º
Finish National No. Item No.
22
(7/8") brushed chrome C8142-KD-26D 234.48.400
Supplied With
2 Keys, Locking sleeve, Screws
50 34
(2") (1 11/32")
→ Master Keyed, Keyed Different

Mounting Hole > Random key numbers only
> Material: Brass-plated
24
(57/64")
Finish National No. Item No.
brushed chrome C8142-MKKD-26D 234.48.498
Supplied With
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2 Keys, Locking sleeve, Screws
Note
Order master key and cylinder rosettes separately, below.

→ Master Key → Keyed Alike

> For MKKD locks above > Material: Brass-plated
> Material: Brass
Finish Keying #’s National No. Item No.
National No. Item No. 101 C8142-101-26D 234.48.401
D4299 210.02.209 brushed chrome 103 C8142-103-26D 234.48.402
Supplied With 10
2 Keys, Locking sleeve, Screws

→ Cylinder Rosettes

> Material: Brass Locks
Ø22 8
(7/8") (5/16")
Finish National No. Item No.
Mounting hole Ø29 Ø23 brushed chrome C2017-26D 232.14.000
Ø24 (15/16") (1 9/64") (59/64") satin brass C2017-4 232.14.001

Keyed alike replacement keys page 10.39
