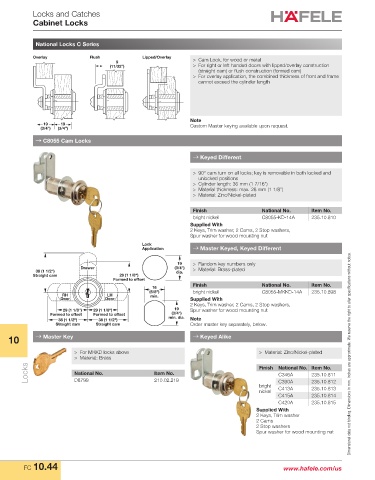

Locks and Catches
Cabinet Locks

National Locks C Series

Overlay Flush Lipped/Overlay > Cam Lock, for wood or metal
9
(11/32") > For right or left handed doors with lipped/overlay construction
(straight cam) or flush construction (formed cam)
> For overlay application, the combined thickness of front and frame
cannot exceed the cylinder length

Note
19 19 Custom Master keying available upon request.
(3/4") (3/4")
→ C8055 Cam Locks

→ Keyed Different

> 90° cam turn on all locks; key is removable in both locked and
unlocked positions
> Cylinder length: 36 mm (1 7/16")
> Material thickness: max. 28 mm (1 1/8")
> Material: Zinc/Nickel-plated

Finish National No. Item No.
bright nickel C8055-KD-14A 235.10.810
Supplied With
2 Keys, Trim washer, 2 Cams, 2 Stop washers,
Spur washer for wood mounting nut
Lock
Application → Master Keyed, Keyed Different

19 > Random key numbers only
Drawer (3/4") > Material: Brass-plated
38 (1 1/2") dia.
Straight cam 29 (1 1/8")
Formed to offset
Finish National No. Item No.
16
(5/8") bright nickel C8055-MKKD-14A 235.10.898
RH LH min.
Door Door Supplied With
2 Keys, Trim washer, 2 Cams, 2 Stop washers,
29 (1 1/8") 29 (1 1/8") 19 Spur washer for wood mounting nut
Formed to offset Formed to offset (3/4")
38 (1 1/2") 38 (1 1/2") min. dia. Note
Straight cam Straight cam Order master key separately, below.
10 → Master Key → Keyed Alike

> For MKKD locks above > Material: Zinc/Nickel-plated Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Brass
Locks National No. Item No. Finish National No. Item No.
C346A
235.10.811
D8799
210.02.219
bright C390A 235.10.812
nickel C413A 235.10.813
C415A 235.10.814
C420A 235.10.815
Supplied With
2 Keys, Trim washer
2 Cams
2 Stop washers
Spur washer for wood mounting nut

FC 10.44 www.hafele.com/us
