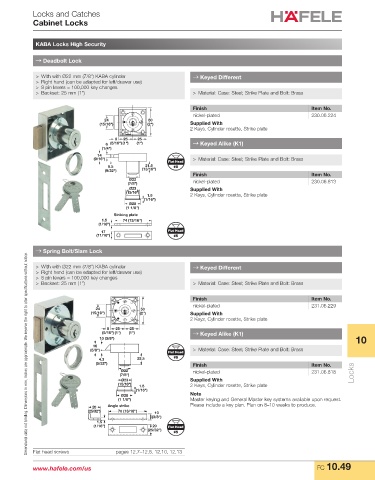

Locks and Catches
Cabinet Locks

KABA Locks High Security

→ Deadbolt Lock

> With with Ø22 mm (7/8") KABA cylinder → Keyed Different
> Right hand (can be adapted for left/drawer use)
> 8 pin levers = 100,000 key changes
> Backset: 25 mm (1") > Material: Case: Steel; Strike Plate and Bolt: Brass

Finish Item No.
nickel-plated 230.06.224
24 50
(15/16") (2") Supplied With
2 Keys, Cylinder rosette, Strike plate
8 25 25
6 (5/16") (1") (1") → Keyed Alike (K1)
(1/4")
14
(9/16") > Material: Case: Steel; Strike Plate and Bolt: Brass
Flat Head
6.5 21.5 #8
(9/32") (13/16")
Finish Item No.
Ø22
(7/8") nickel-plated 230.06.813
Ø23 Supplied With
(15/16")
1.5 2 Keys, Cylinder rosette, Strike plate
(1/16")
Ø28
(1 1/8")
Striking plate
1.5 74 (13/16")
(1/16")
17 Flat Head
(11/16") #5
→ Spring Bolt/Slam Lock
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> With with Ø22 mm (7/8") KABA cylinder → Keyed Different
> Right hand (can be adapted for left/drawer use)
> 8 pin levers = 100,000 key changes
> Backset: 25 mm (1") > Material: Case: Steel; Strike Plate and Bolt: Brass

Finish Item No.
nickel-plated 231.06.229
24 50
(15/16") (2") Supplied With
2 Keys, Cylinder rosette, Strike plate
8 25 25
(5/16") (1") (1") → Keyed Alike (K1)
10 (3/8") 10
16
(5/8") > Material: Case: Steel; Strike Plate and Bolt: Brass
Flat Head
4.3 22.5 #8
(5/32") Finish Item No.
Ø22 nickel-plated 231.06.818
(7/8") Locks
Ø23 Supplied With
(15/16") 1.5 2 Keys, Cylinder rosette, Strike plate
(1/16")
Ø28 Note
(1 1/8") Master keying and General Master key systems available upon request.
20 Angle strike Please include a key plan. Plan on 8–10 weeks to produce.
(25/32") 70 (13/16") 10
(3/8")
1.5
(1/16") 20 Flat Head
(25/32")
#5

Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 10.49
