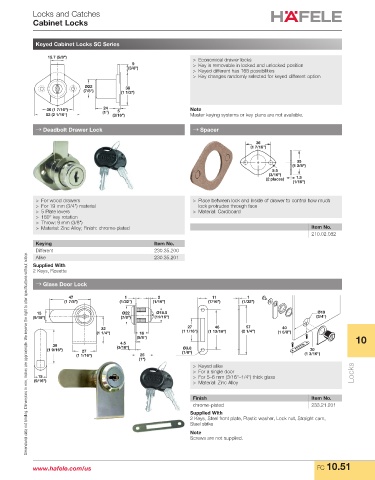

Locks and Catches
Cabinet Locks

Keyed Cabinet Locks SC Series

15.7 (5/8") > Economical drawer locks
9 > Key is removable in locked and unlocked position
(3/8")
> Keyed different has 168 possibilities
> Key changes randomly selected for keyed different option
Ø22 38
(7/8") (1 1/2")

36 (1 7/16") 24 5 Note
52 (2 1/16") (1") (3/16") Master keying systems or key plans are not available.

→ Deadbolt Drawer Lock → Spacer

36
(1 7/16")
35
(1 3/8")
5.5
(3/16")
(2 places) 1.5
(1/16")

> For wood drawers > Place between lock and inside of drawer to control how much
> For 19 mm (3/4") material lock protrudes through face
> 5 Plate levers > Material: Cardboard
> 180° key rotation
> Throw: 9 mm (3/8")
> Material: Zinc Alloy; Finish: chrome-plated Item No.
210.02.082
Keying Item No.
Different 230.35.200
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Alike 230.35.201
Supplied With
2 Keys, Rosette
→ Glass Door Lock

47 1 2 11 1
(1 7/8") (1/32") (1/16") (7/16") (1/32")
15 Ø22 Ø18.5 Ø19
(9/16") (7/8") (11/16") (3/4")
32 27 46 57 40
(1 1/4") 16 (1 1/16") (1 13/16") (2 1/4") (1 5/8")
(5/8") 10
4.5
39 (3/16")
Ø3.8
(1 9/16") 27 (1/8") 30
(1 1/16") 25 (1 3/16")
(1")
> Keyed alike
> For a single door Locks
15 > For 5–6 mm (3/16"–1/4") thick glass
(9/16") > Material: Zinc Alloy
Finish Item No.
chrome-plated 233.21.201
Supplied With
2 Keys, Steel front plate, Plastic washer, Lock nut, Straight cam,
Steel strike
Note
Screws are not supplied.

www.hafele.com/us FC 10.51
