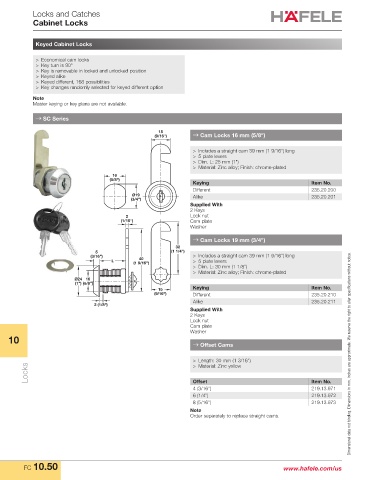

Locks and Catches
Cabinet Locks

Keyed Cabinet Locks

> Economical cam locks
> Key turn is 90°
> Key is removable in locked and unlocked position
> Keyed alike
> Keyed different, 168 possibilities
> Key changes randomly selected for keyed different option
Note
Master keying or key plans are not available.

→ SC Series
15
(9/16") → Cam Locks 16 mm (5/8")

> Includes a straight cam 39 mm (1 9/16") long
> 5 plate levers
> Dim. L: 25 mm (1")
> Material: Zinc alloy; Finish: chrome-plated
16
(5/8")
Keying Item No.
Different 235.20.200
Ø19 Alike 235.20.201
(3/4")
Supplied With
2 Keys
2 Lock nut
(1/16") Cam plate
Washer
→ Cam Locks 19 mm (3/4")
32
5 (1 1/4")
(3/16") 40 > Includes a straight cam 39 mm (1 9/16") long
L (1 9/16") > 5 plate levers
> Dim. L: 30 mm (1 1/8")
> Material: Zinc alloy; Finish: chrome-plated
Ø24 16
(1") (5/8")
15 Keying Item No.
(9/16") Different 235.20.210
Alike 235.20.211
3 (1/8")
Supplied With
2 Keys
Lock nut
Cam plate
Washer
10
→ Offset Cams

> Length: 30 mm (1 3/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks
> Material: Zinc yellow
Offset
4 (3/16") Item No.
219.13.971
6 (1/4") 219.13.972
8 (5/16") 219.13.973
Note
Order separately to replace straight cams.

FC 10.50 www.hafele.com/us
