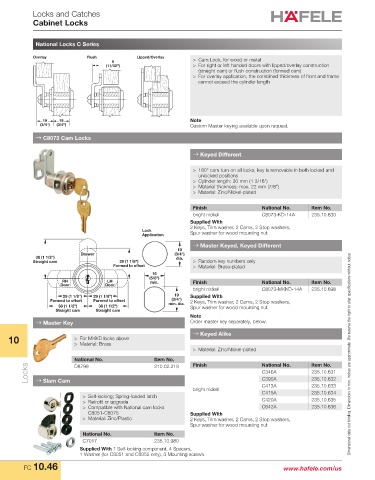

Page 1068 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

National Locks C Series

Overlay Flush Lipped/Overlay > Cam Lock, for wood or metal
9
(11/32") > For right or left handed doors with lipped/overlay construction
(straight cam) or flush construction (formed cam)
> For overlay application, the combined thickness of front and frame
cannot exceed the cylinder length

19 19 Note
(3/4") (3/4") Custom Master keying available upon request.
→ C8073 Cam Locks

→ Keyed Different

> 180° cam turn on all locks; key is removable in both locked and
unlocked positions
> Cylinder length: 30 mm (1 3/16")
> Material thickness: max. 22 mm (7/8")
> Material: Zinc/Nickel-plated

Finish National No. Item No.
bright nickel C8073-KD-14A 235.10.630
Supplied With
2 Keys, Trim washer, 2 Cams, 2 Stop washers,
Lock
Application Spur washer for wood mounting nut
→ Master Keyed, Keyed Different
19
Drawer (3/4")
38 (1 1/2") dia.
Straight cam 29 (1 1/8") > Random key numbers only
Formed to offset > Material: Brass-plated
16
(5/8")
RH LH min. Finish National No. Item No.
Door Door
bright nickel C8073-MKKD-14A 235.10.698
29 (1 1/8") 29 (1 1/8") 19 Supplied With
(3/4")
Formed to offset Formed to offset min. dia. 2 Keys, Trim washer, 2 Cams, 2 Stop washers,
38 (1 1/2") 38 (1 1/2") Spur washer for wood mounting nut
Straight cam Straight cam
Note
→ Master Key Order master key separately, below.
→ Keyed Alike
10 > For MKKD locks above
> Material: Brass
> Material: Zinc/Nickel-plated
National No. Item No. Finish National No. Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks → Slam Cam D8799 210.02.219 C346A 235.10.631

235.10.632
C390A
bright nickel C413A 235.10.633
> Self-locking; Spring-loaded latch C415A 235.10.634
> Retrofit or upgrade C420A 235.10.635
> Compatible with National cam locks C642A 235.10.636
C8051-C8075 Supplied With
> Material: Zinc/Plastic 2 Keys, Trim washer, 2 Cams, 2 Stop washers,
Spur washer for wood mounting nut
National No. Item No.
C7017 235.10.980
Supplied With 1 Self-locking component, 4 Spacers,
1 Washer (for C8051 and C8052 only), 3 Mounting screws
FC 10.46 www.hafele.com/us
