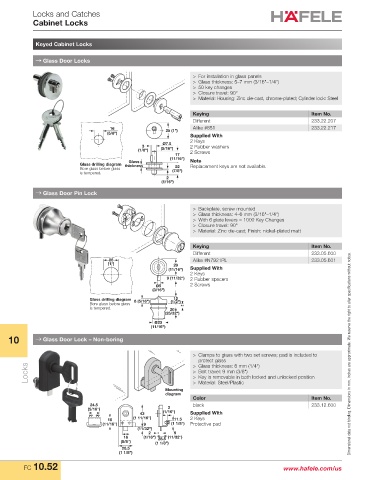

Page 1074 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Cabinet Locks

Keyed Cabinet Locks

→ Glass Door Locks

> For installation in glass panels
> Glass thickness: 5–7 mm (3/16"–1/4")
> 50 key changes
> Closure travel: 90°
> Material: Housing: Zinc die-cast, chrome-plated; Cylinder lock: Steel

Keying Item No.
Different 233.22.207
16 25 (1") Alike #851 233.22.217
(5/8") Supplied With
2 Keys
Ø7.5
3 2 Rubber washers
(1/8") (5/16") 2 Screws
17
(11/16")
Glass Note
Glass drilling diagram thickness Replacement keys are not available.
Bore glass before glass 22
is tempered. (7/8")
2
(1/16")
→ Glass Door Pin Lock
> Backplate, screw mounted
> Glass thickness: 4–6 mm (3/16"–1/4")
> With 6 plate levers = 1000 Key Changes
> Closure travel: 90°
> Material: Zinc die-cast; Finish: nickel-plated matt

Keying Item No.
Different 233.05.600
26 Alike #N7921PL 233.05.601
(1") 29
(11/16") Supplied With
2 Keys
9 (11/32") 2 Rubber spacers
ø5 2 Screws
(3/16")
12
Glass drilling diagram 8 (5/16") (1/2")
Bore glass before glass
is tempered. 20 **
(25/32")
ø23
(11/16")
10 → Glass Door Lock – Non-boring

> Clamps to glass with two set screws; pad is included to Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
protect glass
Locks > Bolt travel: 9 mm (3/8")
> Glass thickness: 6 mm (1/4")
> Key is removable in both locked and unlocked position

Mounting > Material: Steel/Plastic
diagram
Color Item No.
24.5 black 233.12.600
(5/16") 2
43 (1/16") Supplied With
(1 11/16") 2 Keys
18 11.5
(11/16") 9 (1 1/8") Protective pad
(11/32")
2 9
16 (1/16") 28.5 (11/32")
(5/8") (1 1/8")
28.5
(1 1/8")
FC 10.52 www.hafele.com/us
