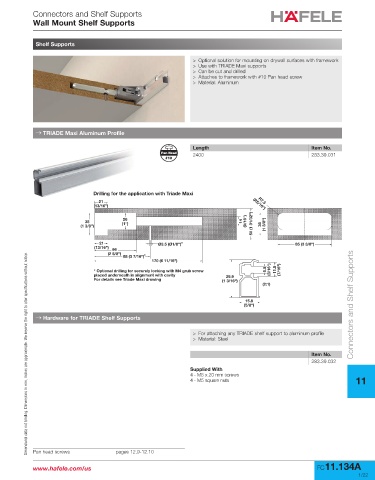

Connectors and Shelf Supports
Wall Mount Shelf Supports

Shelf Supports

> Optional solution for mounting on drywall surfaces with framework
> Use with TRIADE Maxi supports
> Can be cut and drilled
> Attaches to framework with #10 Pan head screw
> Material: Aluminum

→ TRIADE Maxi Aluminum Profile

Length Item No.
Pan Head 2400 283.39.031
#10

Drilling for the application with Triade Maxi
21 R7.5
(13/16") (R5/16")
26
35 (1") 14 (9/16")
(1 3/8") 50 (1 31/32") 35 (1 3/8")

21 Ø3.5 (Ø1/8") * 85 (3 3/8")
(13/16") 66
(2 5/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
88 (3 7/16") *
170 (6 11/16")
* Optional drilling for securely locking with M4 grub screw 5.5 (3/16") 11.5 (7/16")
placed underneath in alignment with cavity 29.9
For details see Triade Maxi drawing (1 3/16")
(2:1)

15.8
(5/8") Connectors and Shelf Supports
→ Hardware for TRIADE Shelf Supports

> For attaching any TRIADE shelf support to aluminum profile
> Material: Steel

Item No.
283.39.032
Supplied With
4 - M5 x 20 mm screws
4 - M5 square nuts 11

Pan head screws pages 12.9-12.10
