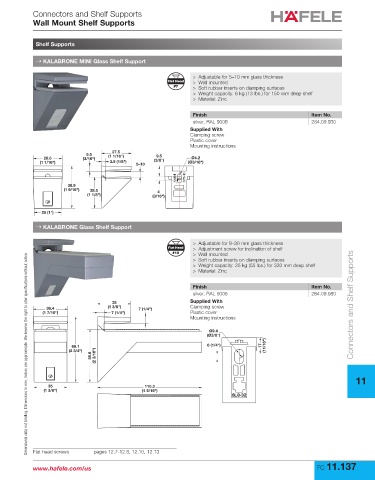

Connectors and Shelf Supports
Wall Mount Shelf Supports

Shelf Supports

→ KALABRONE MINI Glass Shelf Support

> Adjustable for 5–10 mm glass thickness
Flat Head > Wall mounted
#7 > Soft rubber inserts on clamping surfaces
> Weight capacity: 6 kg (13 lbs.) for 150 mm deep shelf
> Material: Zinc

Finish Item No.
silver, RAL 9006 284.09.930
Supplied With
Clamping screw
Plastic cover
Mounting instructions
27.5
5.5
26.5 (3/16") (1 1/16") 9.5 Ø4.2
(1 1/16") 3.5 (1/8") 5–10 (3/8") (Ø3/16")

38.9
(1 9/16") 28.5 4
(1 1/8") (3/16")

25 (1")

→ KALABRONE Glass Shelf Support

> Adjustable for 8–30 mm glass thickness
Flat Head > Adjustment screw for inclination of shelf
#10 > Wall mounted
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Soft rubber inserts on clamping surfaces
> Weight capacity: 25 kg (55 lbs.) for 320 mm deep shelf
> Material: Zinc

Finish Item No.
silver, RAL 9006 284.09.980
35 Supplied With Connectors and Shelf Supports
36.4 (1 3/8") 7 (1/4") Clamping screw
(1 7/16") 7 (1/4") Plastic cover
Mounting instructions

Ø9.4
(Ø3/8")
69.1 6 (1/4") 17 (11/16")
(2 3/4")
55.6 (2 3/16")

11
35 110.3
(1 3/8") (4 5/16")

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 11.137
