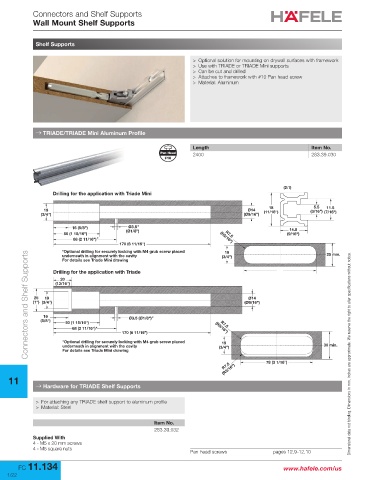

Connectors and Shelf Supports
Wall Mount Shelf Supports

Shelf Supports

> Optional solution for mounting on drywall surfaces with framework
> Use with TRIADE or TRIADE Mini supports
> Can be cut and drilled
> Attaches to framework with #10 Pan head screw
> Material: Aluminum

→ TRIADE/TRIADE Mini Aluminum Profile

Length Item No.
Pan Head 2400 283.39.030
#10

(2:1)
Drilling for the application with Triade Mini

5.5
18
11.5
19 Ø14 (11/16") (3/16") (7/16")
(3/4") (Ø9/16")
16 (5/8") Ø3.5* 14.8
50 (1 15/16") (Ø1/8") R7.5 (9/16")
68 (2 11/16") * (R5/16")
170 (6 11/16")
*Optional drilling for securely locking with M4 grub screw placed 19
Connectors and Shelf Supports
underneath in alignment with the cavity (3/4") 25 min.
For details see Triade Mini drawing
Drilling for the application with Triade
20
(13/16")

25 19 Ø14
(1") (3/4") (Ø9/16")

16 Ø3.5 (Ø1/8")*
(5/8") 50 (1 15/16") R7.5
68 (2 11/16")* (R5/16")
170 (6 11/16")
*Optional drilling for securely locking with M4 grub screw placed 19
underneath in alignment with the cavity (3/4") 30 min.
For details see Triade Mini drawing Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

R7.5 78 (3 1/16")
(R5/16")
11
→ Hardware for TRIADE Shelf Supports

> For attaching any TRIADE shelf support to aluminum profile
> Material: Steel

Item No.
283.39.032
Supplied With
4 - M5 x 20 mm screws
4 - M5 square nuts
Pan head screws pages 12.9-12.10
FC 11.134 www.hafele.com/us
