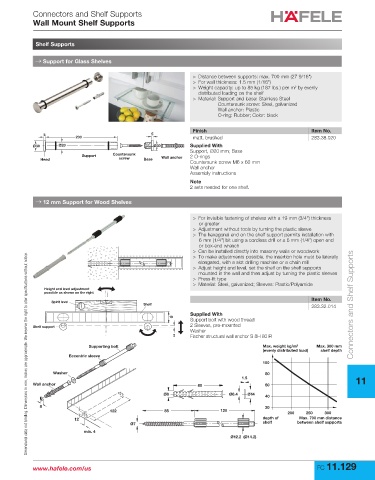

Connectors and Shelf Supports
Wall Mount Shelf Supports

Shelf Supports

→ Support for Glass Shelves

> Distance between supports: max. 700 mm (27 9/16")
> For wall thickness: 1.5 mm (1/16")
2
> Weight capacity: up to 85 kg (187 lbs.) per m by evenly
distributed loading on the shelf
> Material: Support and base: Stainless Steel
Countersunk screw: Steel, galvanized
Wall anchor: Plastic
O-ring: Rubber; Color: black

Finish Item No.
5 5
200 matt, brushed 283.38.020
Ø30 Ø20 Ø30 Supplied With
Support, Ø20 mm; Base
Support Countersunk 2 O-rings
Head screw Base Wall anchor
Countersunk screw M6 x 60 mm
Wall anchor
Assembly instructions
Note
2 sets needed for one shelf.
→ 12 mm Support for Wood Shelves

> For invisible fastening of shelves with a 19 mm (3/4") thickness
or greater
> Adjustment without tools by turning the plastic sleeve
> The hexagonal end on the shelf support permits installation with
6 mm (1/4") bit using a cordless drill or a 6 mm (1/4") open end
or box-end wrench
> Can be installed directly into masonry walls or woodwork
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> To make adjustments possible, the insertion hole must be laterally
elongated, with a slot drilling machine or a chain mill
> Adjust height and level, set the shelf on the shelf supports
mounted in the wall and then adjust by turning the plastic sleeves
> Press-fit type
> Material: Steel, galvanized; Sleeves: Plastic/Polyamide
Height and level adjustment
possible as shown on the right
Item No.
Spirit level
Shelf Connectors and Shelf Supports
283.32.014
Supplied With
19
Support bolt with wood thread
Shelf support 2 Sleeves, pre-mounted
Washer
2 Fischer structural wall anchor S 8H 80 R
Supporting bolt Max. weight kg/m 2 Max. 300 mm
(evenly distributed load) shelf depth
Eccentric sleeve
100
Washer 80
1.5 11
Wall anchor 80 60
Ø8 Ø6.4 Ø14 40
8 20
122 85 120
200 250 300
12 depth of Max. 700 mm distance
Ø7 shelf between shelf supports
min. 4
Ø12.2 (Ø14.2)

www.hafele.com/us FC 11.129
