P. 1302
Connectors and Shelf Supports
Cabinet Shelf Supports

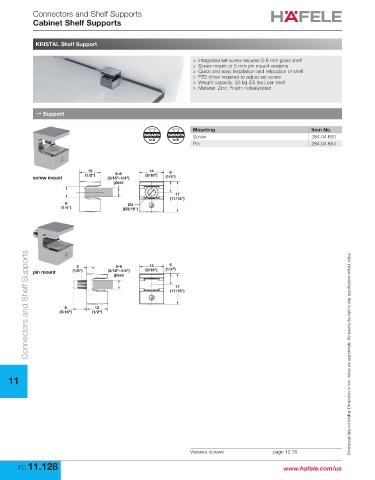

KRISTAL Shelf Support
> Integrated set screw secures 5-6 mm glass shelf
> Screw mount or 5 mm pin mount versions
> Quick and easy installation and relocation of shelf
> PZ2 driver required to adjust set screw
> Weight capacity: 25 kg (55 lbs.) per shelf
> Material: Zinc; Finish: nickel-plated
→ Support
Mounting Item No.
VARIANTA VARIANTA Screw 284.04.650
3 5
Pin 284.04.654
12 5–6 14 6
screw mount (1/2") (3/16"–1/4") (9/16") (1/4")
glass
17
(11/16")
6 Ø4
(1/4") (Ø3/16")
Connectors and Shelf Supports
6
3 5–6 14 (1/4")
pin mount (1/8") (3/16"–1/4") (9/16")
glass
17
(11/16")
8 12
(5/16") (1/2")
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Varianta screws page 12.16
FC 11.128 www.hafele.com/us
