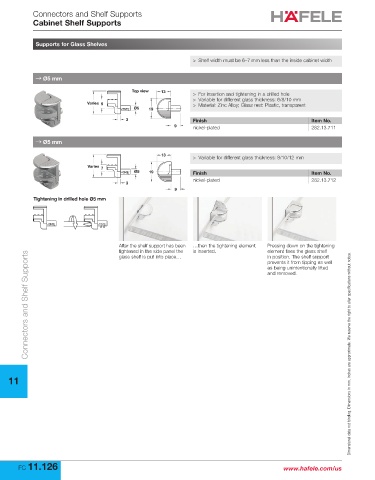

P. 1300
Connectors and Shelf Supports
Cabinet Shelf Supports
Supports for Glass Shelves
> Shelf width must be 6–7 mm less than the inside cabinet width
→ Ø5 mm
Top view 13 > For insertion and tightening in a drilled hole
> Variable for different glass thickness: 6/8/10 mm
Varies 9 > Material: Zinc Alloy; Glass rest: Plastic, transparent
Ø5 19
3 Finish Item No.
9 nickel-plated 282.13.711
→ Ø5 mm
13
> Variable for different glass thickness: 8/10/12 mm
Varies 7
Ø5 19 Finish Item No.
nickel-plated 282.13.712
3
9
Tightening in drilled hole Ø5 mm
After the shelf support has been …then the tightening element Pressing down on the tightening
tightened in the side panel the is inserted. element fixes the glass shelf
Connectors and Shelf Supports
glass shelf is put into place… in position. The shelf support
prevents it from tipping as well
as being unintentionally lifted
and removed.
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 11.126 www.hafele.com/us
