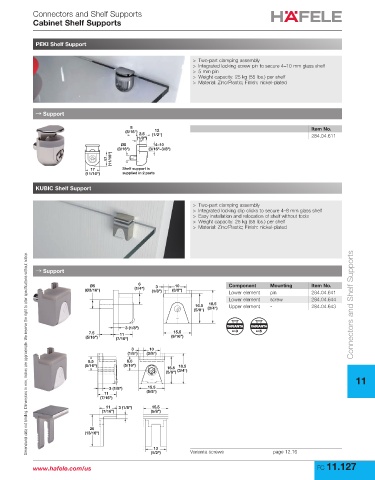

Connectors and Shelf Supports
Cabinet Shelf Supports

PEKI Shelf Support

> Two-part clamping assembly
> Integrated locking screw pin to secure 4–10 mm glass shelf
> 5 mm pin
> Weight capacity: 25 kg (55 lbs.) per shelf
> Material: Zinc/Plastic; Finish: nickel-plated

→ Support

8 Item No.
12
(5/16") 2.5 (1/2")
(1/8") 284.04.611
Ø5 4–10
(3/16") (3/16"–3/8")
(11/16")
17
17 Shelf support is
(11/16") supplied in 2 parts

KUBIC Shelf Support

> Two-part clamping assembly
> Integrated locking clip clicks to secure 4–8 mm glass shelf
> Easy installation and relocation of shelf without tools
> Weight capacity: 25 kg (55 lbs.) per shelf
> Material: Zinc/Plastic; Finish: nickel-plated

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Support

Ø5 6 3 10 Component Mounting Item No.
(Ø3/16") (1/4") (1/8") (3/8") Lower element pin 284.04.641
Lower element screw 284.04.644
16.5 18.5 Upper element - 284.04.643 Connectors and Shelf Supports
(5/8") (3/4")

3 (1/8") VARIANTA VARIANTA
7.5 11 15.5 3 5
(5/16") (7/16") (9/16")

3 10
(1/8") (3/8")
8.5 8.5
(5/16") (5/16") 16.5 18.5
(5/8") (3/4")
11

3 (1/8") 15.5
11 (5/8")
(7/16")
11 3 (1/8") 15.5
(7/16") (5/8")

20
(13/16")

13
(1/2") Varianta screws page 12.16

www.hafele.com/us FC 11.127
