Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

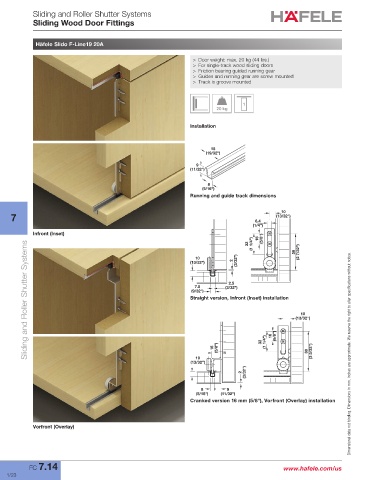

Häfele Slido F-Line19 20A

> Door weight: max. 20 kg (44 lbs.)
> For single-track wood sliding doors
> Friction bearing guided running gear
> Guides and running gear are screw mounted
> Track is groove mounted

Installation

15
(19/32")
9
(11/32")

8
(5/16")
Running and guide track dimensions

10
7 6.4 (13/32")
(1/4")
Infront (Inset) (5/8")
Sliding and Roller Shutter Systems
32 (1 1/4") 16
56 (2 7/32")
10
(13/32") 2 (3/32")

2.5
7.5 (3/32")
(9/32")
Straight version, Infront (Inset) installation

10
(13/32")

32 (1 1/4") 16 (5/8")
(5/8")
16 80 (3 5/32")
10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(13/32")

2 (3/32")

8 9
(5/16") (11/32")
Cranked version 16 mm (5/8"), Vorfront (Overlay) installation

Vorfront (Overlay)

FC 7.14 www.hafele.com/us
