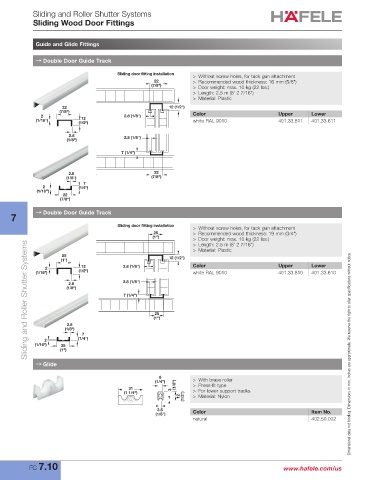

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

Guide and Glide Fittings

→ Double Door Guide Track
Sliding door fitting installation > Without screw holes, for tack gun attachment
22 > Recommended wood thickness: 16 mm (5/8")
(7/8") > Door weight: max. 10 kg (22 lbs.)
> Length: 2.5 m (8' 2 7/16")
> Material: Plastic
22 12 (1/2")
(7/8")
2 12 2.8 (1/8") Color Upper Lower
(1/16") (1/2") white RAL 9010 401.33.811 401.33.611

2.8
(1/8") 2.8 (1/8")

7 (1/4")

2.8 22
(1/8") (7/8")
7
2 (1/4")
(1/16")
22
(7/8")
7 → Double Door Guide Track

Sliding door fitting installation
> Without screw holes, for tack gun attachment
25 > Recommended wood thickness: 19 mm (3/4")
(1") > Door weight: max. 10 kg (22 lbs.)
Sliding and Roller Shutter Systems
> Length: 2.5 m (8' 2 7/16")
> Material: Plastic
25
(1") 12 (1/2")
2 12 2.8 (1/8") Color Upper Lower
(1/16") (1/2") white RAL 9010 401.33.810 401.33.610
2.8 2.8 (1/8")
(1/8")
7 (1/4")

25
(1")
2.8
(1/8")
7
2 (1/4")
(1/16") 25
(1") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Glide
6 > With brass roller
(1/4") > Press‑fit type
31 3 (1/8") > For lower support tracks
(1 1/4")
12 (1/2") > Material: Nylon
3.5 Color Item No.
(1/8")
natural 402.50.002
