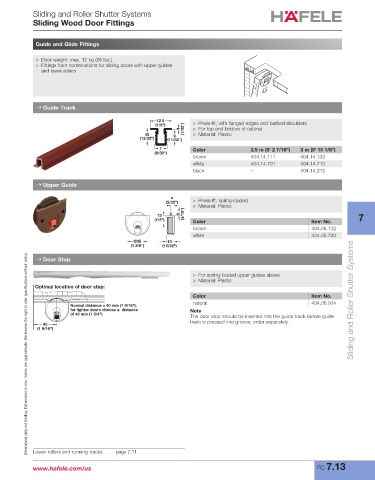

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

Guide and Glide Fittings

> Door weight: max. 12 kg (26 lbs.)
> Fittings form combinations for sliding doors with upper guides
and lower rollers

→ Guide Track

12.5
(1/2") > Press‑fit; with flanged edges and barbed shoulders
1 (1/32") > For top and bottom of cabinet
10 9 > Material: Plastic
(13/32") (11/32")
7 Color 2.5 m (8’ 2 7/16”) 3 m (9’ 10 1/8”)
(9/32")
brown 404.14.111 404.14.133
white 404.14.701 404.14.713
black – 404.14.313

→ Upper Guide

4
(5/32") > Press‑fit; spring‑loaded
> Material: Plastic
13 5 (3/16") 7
(1/2") Color Item No.
brown 404.06.102
white 404.06.700
Ø35 10
(1 3/8") (13/32")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Door Stop

> For spring‑loaded upper guides above
> Material: Plastic
Optimal location of door stop:
Color Item No.
natural 404.06.004 Sliding and Roller Shutter Systems
Normal distance = 40 mm (1 9/16"),
for lighter doors choose a distance Note
of 45 mm (1 3/4")
The door stop should be inserted into the guide track before guide
track is pressed into groove, order separately.
40
(1 9/16")

Lower rollers and running tracks page 7.11

www.hafele.com/us FC 7.13
