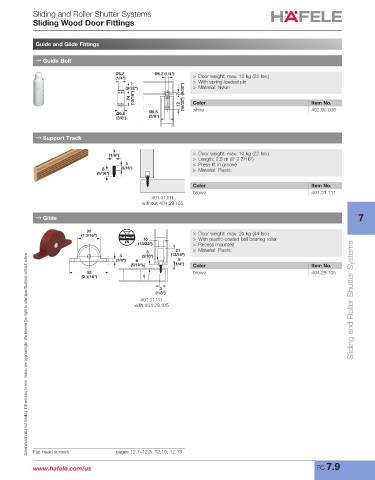

Page 529 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

Guide and Glide Fittings

→ Guide Bolt
Ø6.2 Ø6.2 (1/4") > Door weight: max. 10 kg (22 lbs.)
(1/4")
7 > With spring‑loaded pin
(9/32") (9/32") > Material: Nylon
24 (15/16") 7 12 (15/32") Color Item No.

Ø9.5 Ø9.5 white 402.90.006
(3/8") (3/8")

→ Support Track

3 > Door weight: max. 10 kg (22 lbs.)
(1/8")
> Length: 2.5 m (8' 2 7/16")
5 > Press‑fit in groove
8 (3/16") > Material: Plastic
(5/16")
Color Item No.
brown 401.01.111
401.01.111
without 404.29.105

→ Glide 7

30
(1 3/16") > Door weight: max. 20 kg (44 lbs.)
Flat Head 10 > With plastic‑coated ball bearing roller
#5 (13/32") > Recess mounted
5 21 > Material: Plastic
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
3 (3/16") (13/16")
(1/8") 8 6
(5/16") (1/4") Color Item No.
52 brown 404.29.105
(2 1/16")
3
(1/8")
401.01.111 Sliding and Roller Shutter Systems
with 404.29.105

Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 7.9
