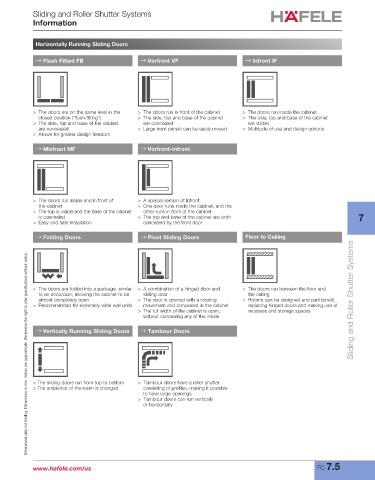

Sliding and Roller Shutter Systems
Information

Horizontally Running Sliding Doors

→ Flush Fitted FB → Vorfront VF → Infront IF

> The doors are on the same level in the > The doors run in front of the cabinet > The doors run inside the cabinet
closed position (“flush‑fitting”) > The side, top and base of the cabinet > The side, top and base of the cabinet
> The side, top and base of the cabinet are concealed are visible
are concealed > Large front panels can be easily moved > Multitude of use and design options
> Allows for greater design freedom

→ Mixfront MF → Vorfront-Infront

> The doors run inside and in front of > A special version of Infront
the cabinet > One door runs inside the cabinet, and the
> The top is visible and the base of the cabinet other runs in front of the cabinet
is concealed > The top and base of the cabinet are both 7
> Easy and safe installation concealed by the front door

→ Folding Doors → Pivot Sliding Doors Floor to Ceiling

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> The doors are folded into a package, similar > A combination of a hinged door and > The doors run between the floor and
to an accordion, allowing the cabinet to be sliding door the ceiling
almost completely open > The door is opened with a rotating > Rooms can be designed and partitioned, Sliding and Roller Shutter Systems
> Recommended for extremely wide wall units movement and concealed in the cabinet replacing hinged doors and making use of
> The full width of the cabinet is open, recesses and storage spaces
without concealing any of the inside

→ Vertically Running Sliding Doors → Tambour Doors

> The sliding doors run from top to bottom > Tambour doors have a roller shutter
> The ambience of the room is changed consisting of profiles, making it possible
to have large openings
> Tambour doors can run vertically
or horizontally
