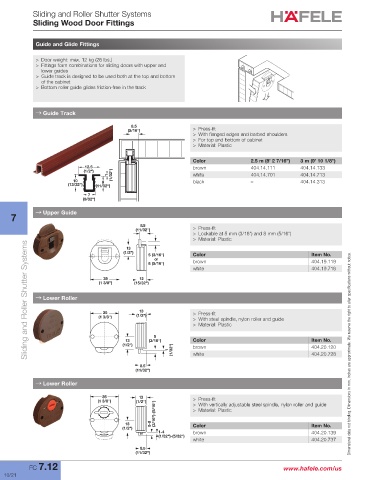

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

Guide and Glide Fittings

> Door weight: max. 12 kg (26 lbs.)
> Fittings form combinations for sliding doors with upper and
lower guides
> Guide track is designed to be used both at the top and bottom
of the cabinet
> Bottom roller guide glides friction-free in the track

→ Guide Track

8.5
(5/16") > Press-fit
> With flanged edges and barbed shoulders
> For top and bottom of cabinet
> Material: Plastic

Color 2.5 m (8’ 2 7/16”) 3 m (9’ 10 1/8”)
12.5 brown 404.14.111 404.14.133
(1/2")
1 (1/32") white 404.14.701 404.14.713
10 9 black – 404.14.313
(13/32") (11/32")
7
(9/32")

7 → Upper Guide

8.5
(11/32") > Press-fit
> Lockable at 5 mm (3/16") and 8 mm (5/16")
> Material: Plastic
Sliding and Roller Shutter Systems
13
(1/2")
5 (3/16") Color Item No.
or
8 (5/16") brown 404.19.118
white 404.19.716
35 12
(1 3/8") (15/32")
→ Lower Roller

35 13 > Press-fit
(1 3/8") (1/2") > With steel spindle, nylon roller and guide
> Material: Plastic
5
13 (3/16") Color Item No.
(1/2") brown 404.20.120
1 (1/32") white 404.20.728 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

8.5
(11/32")

→ Lower Roller
35 13
(1 3/8") (1/2") > Press-fit
(3/16")-(5/16") > Material: Plastic
> With vertically adjustable steel spindle, nylon roller and guide

13 5-8 Color Item No.
(1/2")
1-4 brown 404.20.139
(1/32")-(5/32")
white 404.20.737
8.5
(11/32")
FC 7.12 www.hafele.com/us
10/21
