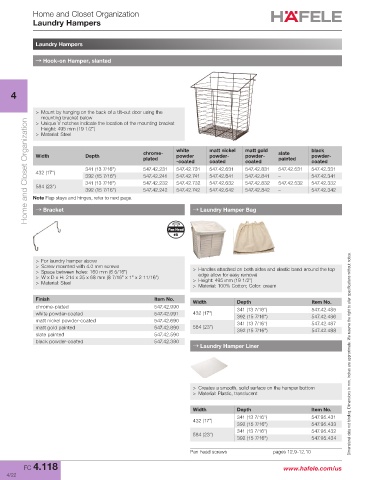

Page 316 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Laundry Hampers

Laundry Hampers

→ Hook-on Hamper, slanted

4

> Mount by hanging on the back of a tilt-out door using the
mounting bracket below
Home and Closet Organization Note Flap stays and hinges, refer to next page. chrome- white matt nickel matt gold slate black
> Unique V notches indicate the location of the mounting bracket
Height: 495 mm (19 1/2")
> Material: Steel

powder-
Depth
powder-
powder-
powder
Width
painted
plated
-coated
coated
coated
coated
547.42.731
341 (13 7/16")
547.42.631
547.42.831
547.42.231
547.42.531
547.42.331
432 (17")
–
547.42.241
547.42.341
547.42.841
547.42.641
547.42.741
392 (15 7/16")
547.42.632
547.42.732
341 (13 7/16")
547.42.832
547.42.532
547.42.332
547.42.232
584 (23")
547.42.342
547.42.642
–
547.42.242
392 (15 7/16")
547.42.842
547.42.742
→ Bracket
Pan Head → Laundry Hamper Bag
#8
> For laundry hamper above
> Screw mounted with 4.0 mm screws
> Space between holes: 160 mm (6 5/16") > Handles attached on both sides and elastic band around the top
> W x D x H: 214 x 25 x 68 mm (8 7/16" x 1" x 2 11/16") edge allow for easy removal
> Material: Steel > Height: 495 mm (19 1/2")
> Material: 100% Cotton; Color: cream
Finish Item No. Width Depth Item No.
chrome-plated 547.42.990 341 (13 7/16") 547.42.485
white powder-coated 547.42.991 432 (17") 392 (15 7/16") 547.42.486
matt nickel powder-coated 547.42.690 341 (13 7/16") 547.42.487
matt gold painted 547.42.890 584 (23") 392 (15 7/16") 547.42.488
slate painted 547.42.590
black powder-coated 547.42.390
→ Laundry Hamper Liner Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Creates a smooth, solid surface on the hamper bottom
> Material: Plastic, translucent
Width Depth Item No.
341 (13 7/16") 547.95.431
432 (17")
392 (15 7/16") 547.95.433
341 (13 7/16") 547.95.432
584 (23")
392 (15 7/16") 547.95.434
Pan head screws pages 12.9-12.10
FC 4.118 www.hafele.com/us
4/22
