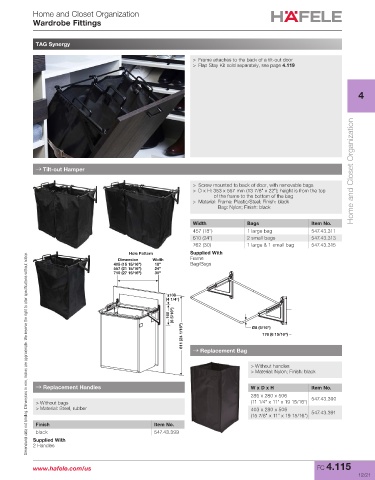

P. 313
Home and Closet Organization
Wardrobe Fittings
TAG Synergy
> Frame attaches to the back of a tilt-out door
> Flap Stay Kit sold separately, see page 4.119
4
Home and Closet Organization
→ Tilt-out Hamper
> Screw mounted to back of door, with removable bags
> D x H: 353 x 557 mm (13 7/8" x 22"); height is from the top
of the frame to the bottom of the bag
> Material: Frame: Plastic/Steel; Finish: black
Bag: Nylon; Finish: black
Width Bags Item No.
457 (18") 1 large bag 547.43.311
610 (24") 2 small bags 547.43.313
762 (30) 1 large & 1 small bag 547.43.315
Hole Pattern Supplied With
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Dimension Width Frame
405 (15 15/16") 18" Bag/Bags
557 (21 15/16") 24"
710 (27 15/16") 30"
108
(4 1/4")
(6 5/16")
160
611 (24 1/16") Ø8 (5/16")
176 (6 15/16")
→ Replacement Bag
> Without handles
> Material: Nylon; Finish: black
→ Replacement Handles W x D x H Item No.
286 x 280 x 506 547.43.390
> Without bags (11 1/4" x 11" x 19 15/16")
> Material: Steel, rubber 403 x 280 x 506
(15 7/8" x 11" x 19 15/16") 547.43.391
Finish Item No.
black 547.43.399
Supplied With
2 Handles
www.hafele.com/us FC 4.115
12/21
