Home and Closet Organization
Laundry Hampers

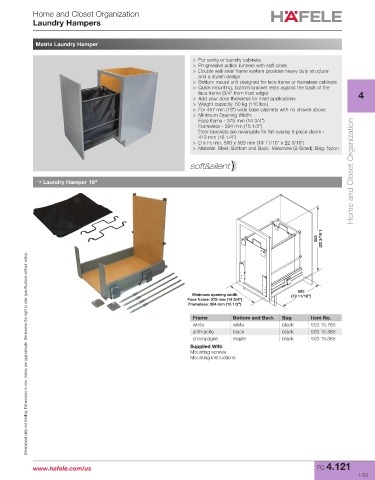

Matrix Laundry Hamper

> For vanity or laundry cabinets
> Progressive action runners with soft close
> Double wall steel frame system provides heavy duty structure
and a stylish design
> Bottom mount unit designed for face frame or frameless cabinets
> Quick mounting, bottom bracket rests against the back of the
face frame (3/4" from front edge) 4
> Add your door thickness for inset applications
> Weight capacity: 50 kg (110 lbs.)
> For 457 mm (18") wide base cabinets with no drawer above
> Minimum Opening Width:
Home and Closet Organization
Face frame - 375 mm (14 3/4")
Frameless - 394 mm (15 1/2")
Door brackets are reversable for full overlay 5 piece doors -
413 mm (16 1/4")
> D x H: min. 500 x 563 mm (19 11/16" x 22 3/16")
> Material: Steel; Bottom and Back: Melamine (2-Sided); Bag: Nylon

→ Laundry Hamper 18"

(22 3/16")
563

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

500
Minimum opening width (19 11/16")
Face frame: 375 mm (14 3/4")
Frameless: 394 mm (15 1/2")
Frame Bottom and Back Bag Item No.
white white black 503.15.765
anthracite black black 503.15.365
champagne maple black 503.15.865
Supplied With
Mounting screws
Mounting instructions
