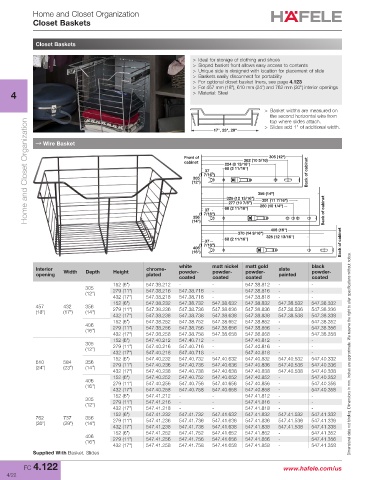

Page 320 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Closet Baskets

Closet Baskets

> Ideal for storage of clothing and shoes
> Sloped basket front allows easy access to contents
> Unique side is designed with location for placement of slide
> Baskets easily disconnect for portability
> For optional closet basket liners, see page 4.123
> For 457 mm (18"), 610 mm (24") and 762 mm (30") interior openings
4 > Material: Steel

> Basket widths are measured on
the second horizontal wire from
Home and Closet Organization Front of (1 7/16") 224 (8 13/16") 356 (14") Back of cabinet
top where slides attach.
> Slides add 1" of additional width.
17", 23", 29"
→ Wire Basket

305 (12")
262 (10 5/16)
cabinet
68 (2 11/16")
37
305
(12")
325 (12 13/16")
291 (11 7/16")
277 (10 7/8”)
260 (10 1/4")
68 (2 11/16”)
37
(1 7/16")
356
(14")
406 (16") Back of cabinet
370 (14 9/16") 325 (12 13/16")
37 68 (2 11/16") Back of cabinet
(1 7/16")
406
(16")
white matt nickel matt gold black
Interior Width Depth Height chrome- powder- powder- powder- slate powder-
opening plated coated coated coated painted coated
152 (6") 547.38.212 - - 547.38.812 - -
305 279 (11") 547.38.216 547.38.716 - 547.38.816 - -
(12")
432 (17") 547.38.218 547.38.718 - 547.38.818 - -
152 (6") 547.38.232 547.38.732 547.38.632 547.38.832 547.38.532 547.38.332
457 432 356 279 (11") 547.38.236 547.38.736 547.38.636 547.38.836 547.38.536 547.38.336
(18") (17") (14")
432 (17") 547.38.238 547.38.738 547.38.638 547.38.838 547.38.538 547.38.338
152 (6") 547.38.252 547.38.752 547.38.652 547.38.852 - 547.38.352
406
(16") 279 (11") 547.38.256 547.38.756 547.38.656 547.38.856 - 547.38.356
432 (17") 547.38.258 547.38.758 547.38.658 547.38.858 - 547.38.358
152 (6") 547.40.212 547.40.712 - 547.40.812 - -
305
(12") 279 (11") 547.40.216 547.40.716 - 547.40.816 - -
432 (17") 547.40.218 547.40.718 - 547.40.818 - - Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
152 (6") 547.40.232 547.40.732 547.40.632 547.40.832 547.40.532 547.40.332
610 584 356 279 (11") 547.40.236 547.40.736 547.40.636 547.40.836 547.40.536 547.40.336
(24") (23") (14")
432 (17") 547.40.238 547.40.738 547.40.638 547.40.838 547.40.538 547.40.338
152 (6") 547.40.252 547.40.752 547.40.652 547.40.852 - 547.40.352
406 279 (11") 547.40.256 547.40.756 547.40.656 547.40.856 - 547.40.356
(16")
432 (17") 547.40.258 547.40.758 547.40.658 547.40.858 - 547.40.358
152 (6") 547.41.212 - - 547.41.812 - -
305
(12") 279 (11") 547.41.216 - - 547.41.816 - -
432 (17") 547.41.218 - - 547.41.818 - -
152 (6") 547.41.232 547.41.732 547.41.632 547.41.832 547.41.532 547.41.332
762 737 356
(30") (29") (14") 279 (11") 547.41.236 547.41.736 547.41.636 547.41.836 547.41.536 547.41.336
432 (17") 547.41.238 547.41.738 547.41.638 547.41.838 547.41.538 547.41.338
152 (6") 547.41.252 547.41.752 547.41.652 547.41.852 - 547.41.352
406 279 (11") 547.41.256 547.41.756 547.41.656 547.41.856 - 547.41.356
(16")
432 (17") 547.41.258 547.41.758 547.41.658 547.41.858 - 547.41.358
Supplied With Basket, Slides
