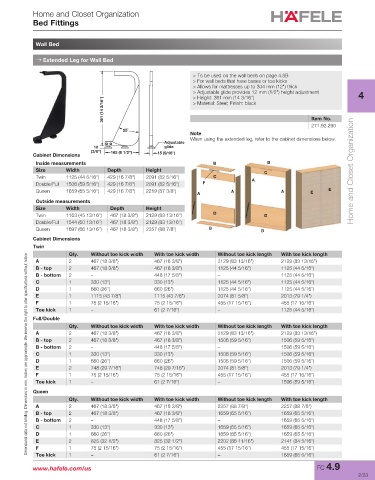

Home and Closet Organization
Bed Fittings

Wall Bed

→ Extended Leg for Wall Bed

> To be used on the wall beds on page 4.8B
> For wall beds that have bases or toe kicks
> Allows for mattresses up to 304 mm (12") thick
> Adjustable glide provides 12 mm (1/2") height adjustment 4
> Height: 361 mm (14 3/16")
361 (14 3/16") > Material: Steel; Finish: black

Item No.
271.92.290
25˚
Note
When using the extended leg, refer to the cabinet dimensions below.
Adjustable
10 glide
(3/8") 165 (6 1/2")
Cabinet Dimensions 15 (9/16")
Inside measurements B B
Size Width Depth Height C Home and Closet Organization
Twin 1125 (44 5/16") 429 (16 7/8") 2091 (82 5/16") C A
Double/Full 1506 (59 5/16") 429 (16 7/8") 2091 (82 5/16") F
Queen 1659 (65 5/16") 429 (16 7/8") 2219 (87 3/8") A A E E
A
Outside measurements
Size Width Depth Height
Twin 1163 (45 13/16") 467 (18 3/8") 2129 (83 13/16") D D
Double/Full 1544 (60 13/16") 467 (18 3/8") 2129 (83 13/16")
Queen 1697 (66 13/16") 467 (18 3/8") 2257 (88 7/8") B B
Cabinet Dimensions
Twin
Qty. Without toe kick width With toe kick width Without toe kick length With toe kick length
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
A 2 467 (18 3/8") 467 (18 3/8") 2129 (83 13/16") 2129 (83 13/16")
B - top 2 467 (18 3/8") 467 (18 3/8") 1125 (44 5/16") 1125 (44 5/16")
B - bottom 2 – 448 (17 5/8") – 1125 (44 5/16")
C 1 330 (13") 330 (13") 1125 (44 5/16") 1125 (44 5/16")
D 1 660 (26") 660 (26") 1125 (44 5/16") 1125 (44 5/16")
E 1 1115 (43 7/8") 1115 (43 7/8") 2074 (81 5/8") 2013 (79 1/4")
F 1 75 (2 15/16") 75 (2 15/16") 455 (17 15/16") 455 (17 15/16")
Toe kick 1 – 61 (2 7/16") – 1125 (44 5/16")
Full/Double
Qty. Without toe kick width With toe kick width Without toe kick length With toe kick length
A 2 467 (18 3/8") 467 (18 3/8") 2129 (83 13/16") 2129 (83 13/16")
B - top 2 467 (18 3/8") 467 (18 3/8") 1506 (59 5/16") 1506 (59 5/16")
B - bottom 2 – 448 (17 5/8") – 1506 (59 5/16")
C 1 330 (13") 330 (13") 1506 (59 5/16") 1506 (59 5/16")
D 1 660 (26") 660 (26") 1506 (59 5/16") 1506 (59 5/16")
E 2 748 (29 7/16") 748 (29 7/16") 2074 (81 5/8") 2013 (79 1/4")
F 1 75 (2 15/16") 75 (2 15/16") 455 (17 15/16") 455 (17 15/16")
Toe kick 1 – 61 (2 7/16") – 1506 (59 5/16")
Queen
Qty. Without toe kick width With toe kick width Without toe kick length With toe kick length
A 2 467 (18 3/8") 467 (18 3/8") 2257 (88 7/8") 2257 (88 7/8")
B - top 2 467 (18 3/8") 467 (18 3/8") 1659 (65 5/16") 1659 (65 5/16")
B - bottom 2 – 448 (17 5/8") – 1659 (65 5/16")
C 1 330 (13") 330 (13") 1659 (65 5/16") 1659 (65 5/16")
D 1 660 (26") 660 (26") 1659 (65 5/16") 1659 (65 5/16")
E 2 825 (32 1/2") 825 (32 1/2") 2202 (86 11/16") 2141 (84 5/16")
F 1 75 (2 15/16") 75 (2 15/16") 455 (17 15/16") 455 (17 15/16")
Toe kick 1 – 61 (2 7/16") – 1659 (65 5/16")

www.hafele.com/us FC 4.9
2/23
