Home and Closet Organization
Bed Fittings

Wall Bed

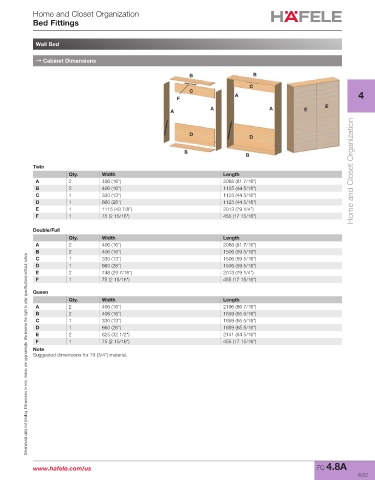

→ Cabinet Dimensions

B B
C
C
F A 4
A A A E E

D
D
B
B
Twin
Qty. Width Length Home and Closet Organization
A 2 406 (16") 2068 (81 7/16")
B 2 406 (16") 1125 (44 5/16")
C 1 330 (13") 1125 (44 5/16")
D 1 660 (26") 1125 (44 5/16")
E 1 1115 (43 7/8") 2013 (79 1/4")
F 1 75 (2 15/16") 455 (17 15/16")

Double/Full
Qty. Width Length
A 2 406 (16") 2068 (81 7/16")
B 2 406 (16") 1506 (59 5/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
C 1 330 (13") 1506 (59 5/16")
D 1 660 (26") 1506 (59 5/16")
E 2 748 (29 7/16") 2013 (79 1/4")
F 1 75 (2 15/16") 455 (17 15/16")

Queen
Qty. Width Length
A 2 406 (16") 2196 (86 7/16")
B 2 406 (16") 1659 (65 5/16")
C 1 330 (13") 1659 (65 5/16")
D 1 660 (26") 1659 (65 5/16")
E 2 825 (32 1/2") 2141 (84 5/16")
F 1 75 (2 15/16") 455 (17 15/16")
Note
Suggested dimensions for 19 (3/4") material.

www.hafele.com/us FC 4.8A
6/22
