Home and Closet Organization
Bed Fittings

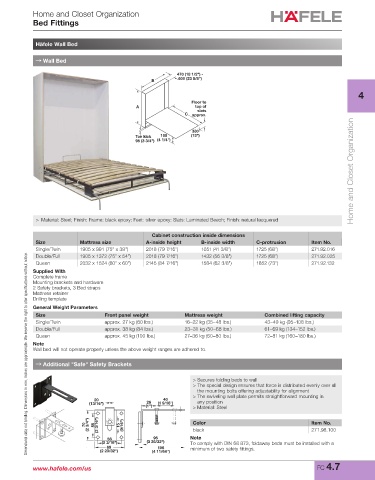

Häfele Wall Bed

→ Wall Bed

470 (18 1/2") -
B 600 (23 5/8")
4
Floor to
A top of
slats
C approx.
Home and Closet Organization
330
Toe kick 108 (13")
95 (3 3/4") (4 1/4")

> Material: Steel; Finish: Frame: black epoxy: Feet: silver epoxy: Slats: Laminated Beech; Finish: natural lacquered

Cabinet construction inside dimensions
Size Mattress size A-inside height B-inside width C-protrusion Item No.
Single/Twin 1905 x 991 (75" x 39") 2018 (79 7/16") 1051 (41 3/8") 1725 (68") 271.92.016
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Double/Full 1905 x 1372 (75" x 54") 2018 (79 7/16") 1432 (56 3/8") 1725 (68") 271.92.025
Queen 2032 x 1524 (80" x 60") 2145 (84 7/16") 1584 (62 3/8") 1852 (73") 271.92.132
Supplied With
Complete frame
Mounting brackets and hardware
2 Safety brackets, 3 Bed straps
Mattress retainer
Drilling template
General Weight Parameters
Size Front panel weight Mattress weight Combined lifting capacity
Single/Twin approx. 27 kg (60 lbs.) 16–22 kg (35–48 lbs.) 43–49 kg (95–108 lbs.)
Double/Full approx. 38 kg (84 lbs.) 23–31 kg (50–68 lbs.) 61–69 kg (134–152 lbs.)
Queen approx. 45 kg (100 lbs.) 27–36 kg (60–80 lbs.) 72–81 kg (160–180 lbs.)
Note
Wall bed will not operate properly unless the above weight ranges are adhered to.

→ Additional "Safe" Safety Brackets

> Secures folding beds to wall
> The special design ensures that force is distributed evenly over all
the mounting bolts offering adjustability for alignment
> The swiveling wall plate permits straightforward mounting in
20 40
(13/16") 26 (1 9/16") any position
(1") > Material: Steel

70 (2 3/4") 55 (2 3/16") 15 (9/16") Color Item No.
black
271.98.100
55 96 Note
(2 3/16") (3 25/32") To comply with DIN 68 873, foldaway beds must be installed with a
69 106 minimum of two safety fittings.
(2 23/32") (4 11/64")

www.hafele.com/us FC 4.7
