Home and Closet Organization
Bed Fittings

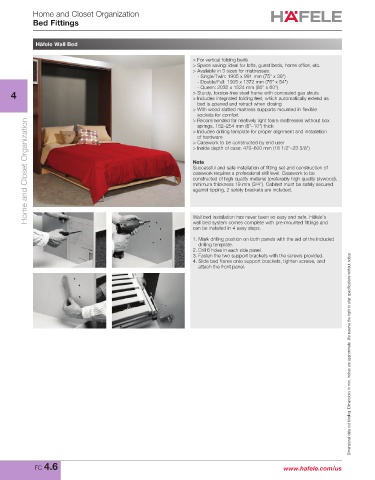

Häfele Wall Bed

> For vertical folding beds
> Space saving: ideal for lofts, guest beds, home office, etc.
> Available in 3 sizes for mattresses:
- Single/Twin: 1905 x 991 mm (75" x 39")
- Double/Full: 1905 x 1372 mm (75" x 54")
- Queen: 2032 x 1524 mm (80" x 60")
4 > Sturdy, torsion-free steel frame with concealed gas struts
> Includes integrated folding feet, which automatically extend as
bed is opened and retract when closing
> With wood slatted mattress supports mounted in flexible
sockets for comfort
> Recommended for relatively light foam mattresses without box
Home and Closet Organization > Inside depth of case: 470–600 mm (18 1/2"–23 5/8")
springs, 152–254 mm (6"–10") thick
> Includes drilling template for proper alignment and installation
of hardware
> Casework to be constructed by end user

Note
Successful and safe installation of fitting set and construction of
casework requires a professional skill level. Casework to be
constructed of high quality material (preferably high quality plywood),
minimum thickness 19 mm (3/4"). Cabinet must be safely secured
against tipping, 2 safety brackets are included.

Wall bed installation has never been so easy and safe. Häfele’s
wall bed system comes complete with pre-mounted fittings and
can be installed in 4 easy steps.
1. Mark drilling position on both panels with the aid of the included
drilling template.
2. Drill 6 holes in each side panel.
3. Fasten the two support brackets with the screws provided.
4. Slide bed frame onto support brackets, tighten screws, and
attach the front panel. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 4.6 www.hafele.com/us
