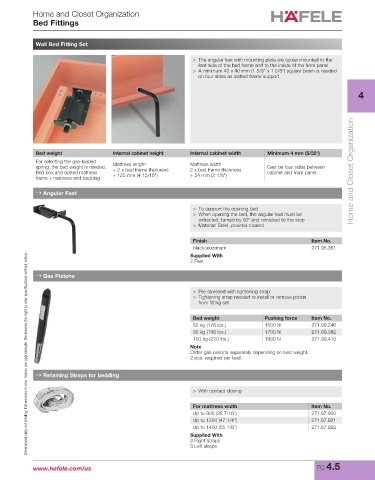

Home and Closet Organization
Bed Fittings

Wall Bed Fitting Set

> The angular feet with mounting plate are screw mounted to the
foot side of the bed frame and to the inside of the front panel
> A minimum 40 x 40 mm (1 5/8" x 1 5/8") square beam is needed
on four sides as slatted frame support

4

Home and Closet Organization

Bed weight Internal cabinet height Internal cabinet width Minimum 4 mm (5/32")
For selecting the gas-loaded
spring, the bed weight is needed. Mattress length Mattress width Gap on four sides between
2 x bed frame thickness
+ 2 x bed frame thickness
Bed box and slatted mattress cabinet and front panel.
frame + mattress and bedding + 125 mm (4 15/16") + 54 mm (2 1/8")
→ Angular Feet

> To support the opening bed
> When opening the bed, the angular feet must be
extracted, turned by 90º and retracted to the stop
> Material: Steel, powder-coated

Finish Item No.
black/aluminum 271.95.361
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied With
2 Feet

→ Gas Pistons

> Pre-stressed with tightening strap
> Tightening strap needed to install or remove piston
from fitting set

Bed weight Pushing force Item No.
80 kg (176 lbs.) 1500 N 271.99.346
90 kg (198 lbs.) 1700 N 271.99.382
100 kg (220 lbs.) 1900 N 271.99.410
Note
Order gas pistons separately depending on bed weight.
2 pcs. required per bed.

→ Retaining Straps for bedding

> With contact closing

For mattress width Item No.
Up to 900 (35 7/16") 271.87.920
Up to 1200 (47 1/4") 271.87.921
Up to 1400 (55 1/8") 271.87.922
Supplied With
3 Right straps
3 Left straps

www.hafele.com/us FC 4.5
