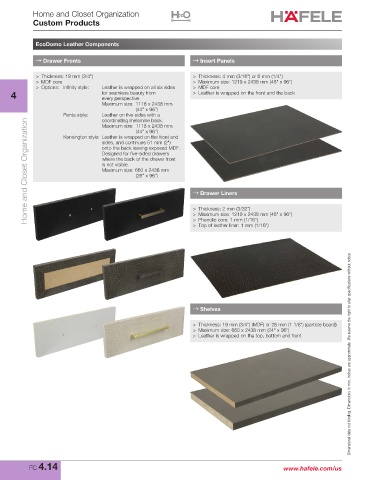

P. 188
Home and Closet Organization
Custom Products
EcoDomo Leather Components
→ Drawer Fronts → Insert Panels
> Thickness: 19 mm (3/4") > Thickness: 4 mm (3/16") or 6 mm (1/4")
> MDF core > Maximum size: 1219 x 2438 mm (48" x 96")
> Options: Infinity style: Leather is wrapped on all six sides > MDF core
4 for seamless beauty from > Leather is wrapped on the front and the back
every perspective.
Maximum size: 1118 x 2438 mm
(44" x 96")
Penta style: Leather on five sides with a
coordinating melamine back.
Home and Closet Organization onto the back leaving exposed MDF. → Drawer Liners
Maximum size: 1118 x 2438 mm
(44" x 96")
Kensington style: Leather is wrapped on the front and
sides, and continues 51 mm (2")
Designed for five-sided drawers
where the back of the drawer front
is not visible.
Maximum size: 660 x 2438 mm
(26" x 96")
> Thickness: 2 mm (3/32")
> Maximum size: 1219 x 2438 mm (48" x 96")
> Phenolic core: 1 mm (1/16")
> Top of leather liner: 1 mm (1/16")
→ Shelves
> Thickness: 19 mm (3/4") (MDF) or 28 mm (1 1/8") (particle board)
> Maximum size: 660 x 2438 mm (24" x 96")
> Leather is wrapped on the top, bottom and front Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 4.14 www.hafele.com/us
