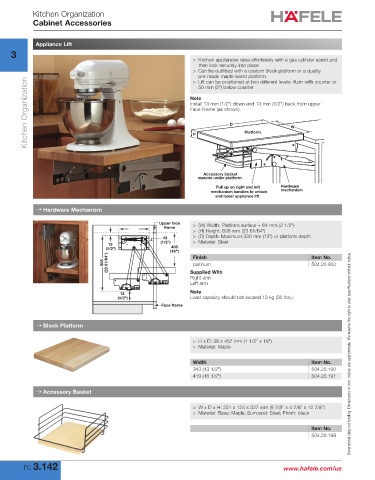

Page 164 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Accessories

Appliance Lift
3
> Kitchen appliances raise effortlessly with a gas cylinder assist and
then lock securely into place
> Can be outfitted with a custom block platform or a quality
pre-made maple wood platform
Kitchen Organization H D Platform Note D Platform W
> Lift can be positioned at two different levels: flush with counter or
50 mm (2") below counter
Install 13 mm (1/2") down and 13 mm (1/2") back from upper
Face Frame (as shown).

H
W

Accessory basket
mounts under platform
Accessory basket
mounts under platform Pull up on right and left Hardware
mechanism handles to unlock mechanism
Pull up on right and left Hardware and lower appliance lift
mechanism handles to unlock mechanism
and lower appliance lift
→ Hardware Mechanism
Upper face
330 frame
(13")
Upper face > (W) Width: Platform surface + 64 mm (2 1/2")
330 frame 13
(13") > (H) Height: 608 mm (23 61/64")
(1/2")
13
13 > (D) Depth: Maximum 330 mm (13") or platform depth
406
(1/2")
13 (1/2") > Material: Steel (16")
406
(1/2") (16") 608 (23 61/64")
(23 61/64") Finish Item No.
608 platinum 504.20.900
Supplied With
Right arm
Left arm 13
(1/2")
13 Note
Face frame
(1/2") Load capacity should not exceed 13 kg (30 lbs.).
Face frame
→ Block Platform
> H x D: 38 x 457 mm (1 1/2" x 18")
> Material: Maple Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Width Item No.
343 (13 1/2") 504.20.190
419 (16 1/2") 504.20.191

→ Accessory Basket

> W x D x H: 251 x 124 x 327 mm (9 7/8" x 4 7/8" x 12 7/8")
> Material: Base: Maple; Surround: Steel; Finish: black

Item No.
504.20.199

FC 3.142 www.hafele.com/us
