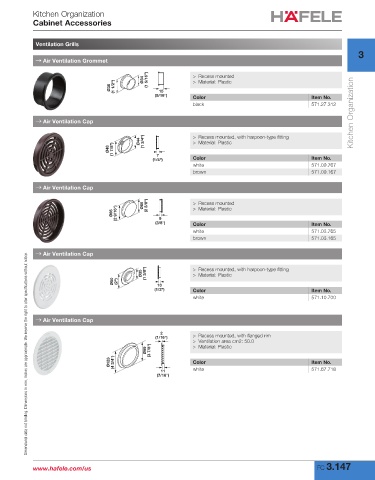

P. 169
Kitchen Organization
Cabinet Accessories
Ventilation Grills
3
→ Air Ventilation Grommet
> Material: Plastic
Ø38 (1 1/2") Ø34 (1 5/16") (9/16") > Recess mounted
15
Color
571.27.312
black Item No.
→ Air Ventilation Cap Kitchen Organization
Ø44 (1 3/4") > Recess mounted, with harpoon-type fitting
> Material: Plastic
Ø48 (1 7/8")
7
(1/4") Color Item No.
white 571.09.767
brown 571.09.167
→ Air Ventilation Cap
> Material: Plastic
Ø65 (2 9/16") Ø60 (2 3/8") > Recess mounted
9
(3/8") Color Item No.
white 571.03.765
brown 571.03.165
→ Air Ventilation Cap
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø35 (1 3/8") > Recess mounted, with harpoon-type fitting
> Material: Plastic
Ø50 (2") 13
(1/2") Color Item No.
white 571.10.700
→ Air Ventilation Cap
2 > Recess mounted, with flanged rim
(1/16")
> Ventilation area cm2: 50.0
Ø99 (3 7/8") > Material: Plastic
Ø123 (4 3/4") Color Item No.
11 white 571.67.718
(7/16")
www.hafele.com/us FC 3.147
