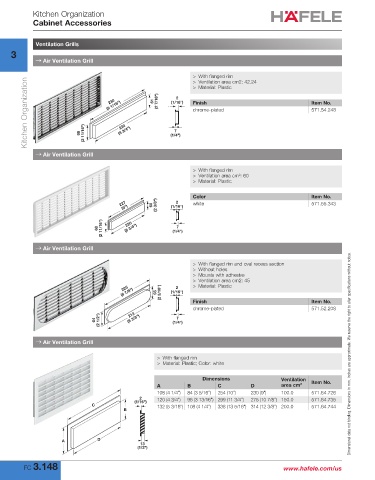

Page 170 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Accessories

Ventilation Grills
3
→ Air Ventilation Grill

> With flanged rim
Kitchen Organization (2 11/16") (9 1/16") (8 3/4") 61 (2 7/16") (1/16") Finish Item No.
> Ventilation area cm2: 42.24
> Material: Plastic
2
230
571.54.248
chrome-plated
220
7
68

→ Air Ventilation Grill (1/4")

> With flanged rim
> Ventilation area cm : 60
2
> Material: Plastic

Color Item No.
227 60 (2 3/8") 2 white 571.55.343
(9") (1/16")

(2 11/16") (8 3/4") 7
220
68 (1/4")

→ Air Ventilation Grill

> With flanged rim and oval recess section
> Without holes
> Mounts with adhesive
> Ventilation area cm2: 45
> Material: Plastic
225
2
(8 7/8") 55 (2 3/16") (1/16")
Finish Item No.
chrome-plated 571.52.208
213
7
64 (2 1/2") (8 3/8") (1/4")

→ Air Ventilation Grill

> With flanged rim Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic; Color: white

Dimensions Ventilation Item No.
A B C D area cm 2
108 (4 1/4") 84 (3 5/16") 254 (10") 230 (9") 100.0 571.64.726
2 120 (4 3/4") 96 (3 13/16") 299 (11 3/4") 275 (10 7/8") 150.0 571.64.735
(1/16")
C 132 (5 3/16") 108 (4 1/4") 338 (13 5/16") 314 (12 3/8") 200.0 571.64.744
B

A D
13
(1/2")

FC 3.148 www.hafele.com/us
