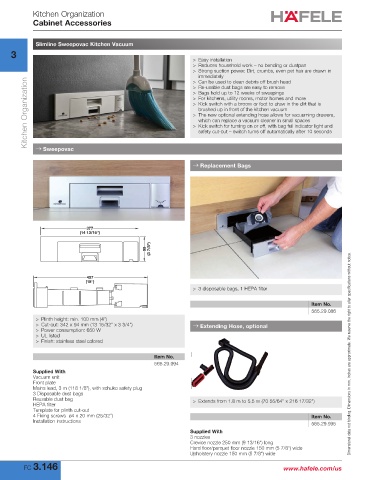

Page 168 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Accessories

Slimline Sweepovac Kitchen Vacuum
3
> Easy installation
> Reduces household work – no bending or dustpan
> Strong suction power: Dirt, crumbs, even pet hair are drawn in
immediately
Kitchen Organization > For kitchens, utility rooms, motor homes and more
> Can be used to clean debris off brush head
> Re-usable dust bags are easy to remove
> Bags hold up to 12 weeks of sweepings
> Kick switch with a broom or foot to draw in the dirt that is
brushed up in front of the kitchen vacuum
> The new optional extending hose allows for vacuuming drawers,
which can replace a vacuum cleaner in small spaces
> Kick switch for turning on or off, with bag full indicator light and
safety cut-out – switch turns off automatically after 10 seconds

→ Sweepovac

→ Replacement Bags

377
(14 13/16")

99 (3 7/8")

457
(18")
> 3 disposable bags, 1 HEPA filter

Item No.
565.29.086
> Plinth height: min. 100 mm (4")
> Cut-out: 342 x 94 mm (13 15/32" x 3 3/4") → Extending Hose, optional
> Power consumption: 650 W
> UL listed
> Finish: stainless steel colored

Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
565.29.994
Supplied With
Vacuum unit
Front plate
Mains lead, 3 m (118 1/8"), with schuko safety plug
3 Disposable dust bags
Reusable dust bag > Extends from 1.8 m to 5.5 m (70 55/64" x 216 17/32")
HEPA filter
Template for plinth cut-out
4 Fixing screws ø4 x 20 mm (25/32") Item No.
Installation instructions 565.29.995
Supplied With
3 nozzles
Crevice nozzle 250 mm (9 13/16") long
Hard floor/parquet floor nozzle 150 mm (5 7/8") wide
Upholstery nozzle 150 mm (5 7/8") wide
FC 3.146 www.hafele.com/us
