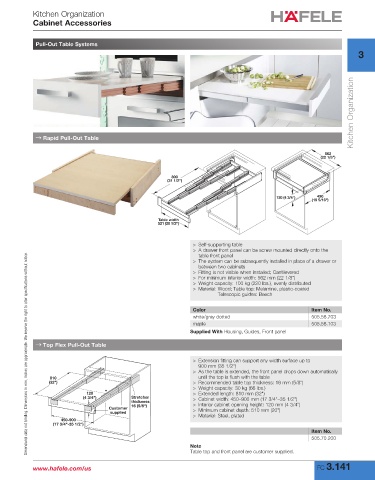

Page 163 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Accessories

Pull-Out Table Systems
3

Kitchen Organization

→ Rapid Pull-Out Table

562 562
(22 1/8")
(22 1/8")

800 800
(31 1/2") (31 1/2")

120 (4 3/4" 490 490
120 (4 3/4"))
(19 5/16")
(19 5/16")
Table width
Table width
521 (20 1/2")
521 (20 1/2")
> Self-supporting table
> A drawer front panel can be screw mounted directly onto the
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
table front panel
> The system can be subsequently installed in place of a drawer or
between two cabinets
> Fitting is not visible when installed; Cantilevered
> For minimum interior width: 562 mm (22 1/8")
> Weight capacity: 100 kg (220 lbs.), evenly distributed
> Material: Wood; Table top: Melamine, plastic-coated
Telescopic guides: Beech

Color Item No.
white/gray dotted 505.58.703
maple 505.58.103
Supplied With Housing, Guides, Front panel

→ Top Flex Pull-Out Table

> Extension fitting can support any width surface up to
900 mm (35 1/2")
> As the table is extended, the front panel drops down automatically
810 until the top is flush with the table
(32") > Recommended table top thickness: 16 mm (5/8")
> Weight capacity: 30 kg (66 lbs.)
120 > Extended length: 810 mm (32")
(4 3/4") Stretcher > Cabinet width: 450–900 mm (17 3/4"–35 1/2")
thickness
16 (5/8") > Interior cabinet opening height: 120 mm (4 3/4")
Customer > Minimum cabinet depth: 510 mm (20")
supplied
> Material: Steel, plated
450-900
(17 3/4"-35 1/2")
Item No.
505.70.200
Note
Table top and front panel are customer supplied.

www.hafele.com/us FC 3.141
