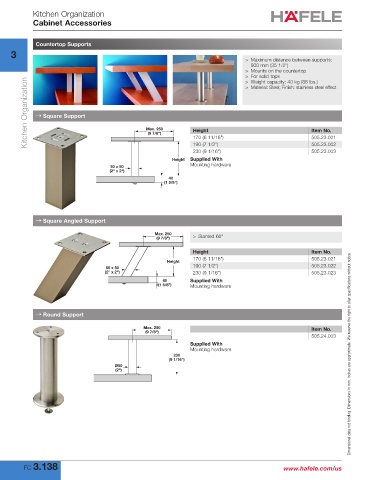

P. 160
Kitchen Organization
Cabinet Accessories
Countertop Supports
3
> Maximum distance between supports:
900 mm (35 1/2")
> Mounts on the countertop
> For solid tops
Kitchen Organization → Square Support Max. 250 Height Item No.
> Weight capacity: 40 kg (88 lbs.)
> Material: Steel; Finish: stainless steel effect
(9 7/8")
170 (6 11/16")
190 (7 1/2")
505.23.002
230 (9 1/16") 505.23.001
505.23.003
Height Supplied With
Mounting hardware
50 x 50
(2" x 2")
40
(1 5/8")
→ Square Angled Support
Max. 250 > Slanted 60°
(9 7/8")
Height Item No.
170 (6 11/16") 505.23.021
Height
50 x 50 190 (7 1/2") 505.23.022
(2" x 2") 230 (9 1/16") 505.23.023
40 Supplied With
(1 5/8") Mounting hardware
→ Round Support
Max. 250 Item No.
(9 7/8")
505.24.003
Supplied With
Mounting hardware
230 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(9 1/16")
Ø50
(2")
FC 3.138 www.hafele.com/us
