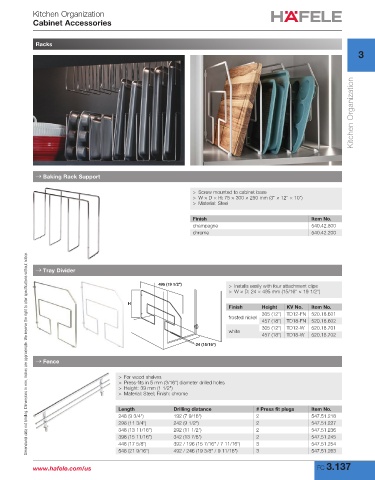

Kitchen Organization
Cabinet Accessories

Racks
3

Kitchen Organization

→ Baking Rack Support

> Screw mounted to cabinet base
> W × D × H: 75 × 300 × 250 mm (3" × 12" × 10")
> Material: Steel

Finish Item No.
champagne 540.42.800
chrome 540.42.200

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Tray Divider

495 (19 1/2") > Installs easily with four attachment clips
> W × D: 24 × 495 mm (15/16" × 19 1/2")
H
Finish Height KV No. Item No.
305 (12") TD12-FN 520.18.601
frosted nickel
457 (18") TD18-FN 520.18.602
305 (12") TD12-W 520.18.701
white
457 (18") TD18-W 520.18.702
24 (15/16")

→ Fence

> For wood shelves
> Press-fits in 5 mm (3/16") diameter drilled holes
> Height: 39 mm (1 1/2")
> Material: Steel; Finish: chrome

Length Drilling distance # Press fit plugs Item No.
248 (9 3/4") 192 (7 9/16") 2 547.51.218
298 (11 3/4") 242 (9 1/2") 2 547.51.227
348 (13 11/16") 292 (11 1/2") 2 547.51.236
398 (15 11/16") 342 (13 7/8") 2 547.51.245
448 (17 5/8") 392 / 196 (15 7/16" / 7 11/16") 3 547.51.254
548 (21 9/16") 492 / 246 (19 3/8" / 9 11/16") 3 547.51.263

www.hafele.com/us FC 3.137
