Kitchen Organization
Cabinet Solutions

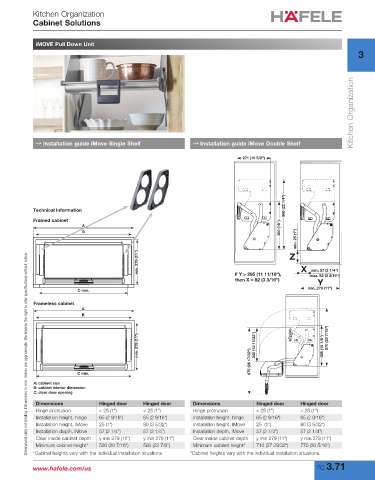

iMOVE Pull Down Unit
3

Kitchen Organization

→ Installation guide iMove Single Shelf → Installation guide iMove Double Shelf

271 (10 5/8")

565 (22 1/4")
Technical Information
Framed cabinet
A 380 (15")
min. 25 (1")
B

min. 279 (11") Z X min. 57 (2 1/4")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

If Y > 295 (11 11/16"),
then X = 82 (3 3/16") max. 82 (3 3/16")
Y
min. 279 (11")
C min.
Frameless cabinet
A
B

min. 279 (11") 340 (13 11/32") 385 (15 1/8") 570 (22 7/16")

C min. 675 (26 17/32")
A: cabinet size
B: cabinet interior dimension
C: clear door opening
Dimensions Hinged door Hinged door Dimensions Hinged door Hinged door
Hinge protrusion < 25 (1") < 25 (1") Hinge protrusion < 25 (1") < 25 (1")
Installation height, hinge 65 (2 9/16") 65 (2 9/16") Installation height, hinge 65 (2 9/16") 65 (2 9/16")
Installation height, iMove 25 (1") 80 (3 5/32") Installation height, iMove 25 (1") 80 (3 5/32")
Installation depth, iMove 57 (2 1/4") 57 (2 1/4") Installation depth, iMove 57 (2 1/4") 57 (2 1/4")
Clear inside cabinet depth y min 279 (11") y min 279 (11") Clear inside cabinet depth y min 279 (11") y min 279 (11")
Minimum cabinet height* 520 (20 7/16") 580 (22 7/8") Minimum cabinet height* 710 (27 29/32") 770 (30 5/16")
*Cabinet heights vary with the individual installation situations. *Cabinet heights vary with the individual installation situations.

www.hafele.com/us FC 3.71
