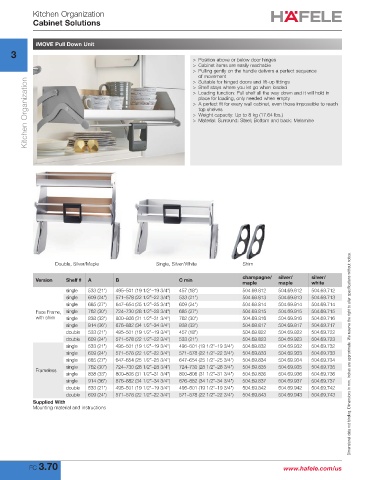

Page 88 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Cabinet Solutions

iMOVE Pull Down Unit
3
> Position above or below door hinges
> Cabinet items are easily reachable
> Pulling gently on the handle delivers a perfect sequence
of movement
Kitchen Organization place for loading, only needed when empty
> Suitable for hinged doors and lift-up fittings
> Shelf stays where you let go when loaded
> Loading function: Pull shelf all the way down and it will hold in
> A perfect fit for every wall cabinet, even those impossible to reach
top shelves
> Weight capacity: Up to 8 kg (17.64 lbs.)
> Material: Surround: Steel; Bottom and back: Melamine

Double, Silver/Maple Single, Silver/White Shim

champagne/ silver/ silver/
Version Shelf # A B C min maple maple white
single 533 (21") 495–501 (19 1/2"–19 3/4") 457 (18") 504.69.812 504.69.912 504.69.712
single 609 (24") 571–578 (22 1/2”–22 3/4") 533 (21") 504.69.813 504.69.913 504.69.713
single 685 (27") 647–654 (25 1/2”–25 3/4") 609 (24") 504.69.814 504.69.914 504.69.714
Face Frame, single 762 (30") 724–730 (28 1/2”–28 3/4") 685 (27") 504.69.815 504.69.915 504.69.715
with shim single 838 (33") 800–806 (31 1/2”–31 3/4") 762 (30") 504.69.816 504.69.916 504.69.716
single 914 (36") 876–882 (34 1/2”–34 3/4") 838 (33") 504.69.817 504.69.917 504.69.717
double 533 (21") 495–501 (19 1/2"–19 3/4") 457 (18") 504.69.822 504.69.922 504.69.722
double 609 (24") 571–578 (22 1/2”–22 3/4") 533 (21") 504.69.823 504.69.923 504.69.723
single 533 (21") 495–501 (19 1/2"–19 3/4") 495–501 (19 1/2"–19 3/4") 504.69.832 504.69.932 504.69.732
single 609 (24") 571–578 (22 1/2”–22 3/4") 571–578 (22 1/2”–22 3/4") 504.69.833 504.69.933 504.69.733 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
single 685 (27") 647–654 (25 1/2”–25 3/4") 647–654 (25 1/2”–25 3/4") 504.69.834 504.69.934 504.69.734
single 762 (30") 724–730 (28 1/2”–28 3/4") 724–730 (28 1/2”–28 3/4") 504.69.835 504.69.935 504.69.735
Frameless
single 838 (33") 800–806 (31 1/2”–31 3/4") 800–806 (31 1/2”–31 3/4") 504.69.836 504.69.936 504.69.736
single 914 (36") 876–882 (34 1/2”–34 3/4") 876–882 (34 1/2”–34 3/4") 504.69.837 504.69.937 504.69.737
double 533 (21") 495–501 (19 1/2"–19 3/4") 495–501 (19 1/2"–19 3/4") 504.69.842 504.69.942 504.69.742
double 609 (24") 571–578 (22 1/2”–22 3/4") 571–578 (22 1/2”–22 3/4") 504.69.843 504.69.943 504.69.743
Supplied With
Mounting material and instructions
