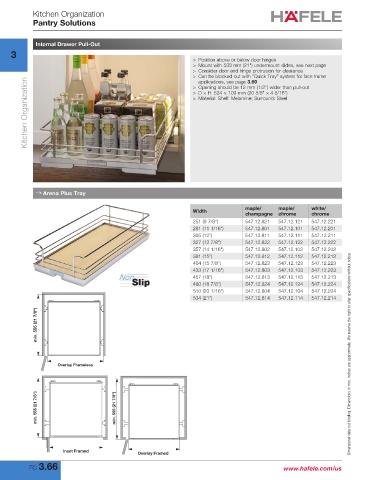

Page 84 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Kitchen Organization
Pantry Solutions

Internal Drawer Pull-Out
3
> Position above or below door hinges
> Mount with 533 mm (21") undermount slides, see next page
> Consider door and hinge protrusion for clearance
> Can be blocked out with “Quick Tray” system for face frame
Kitchen Organization > Material: Shelf: Melamine; Surround: Steel
applications, see page 3.69
> Opening should be 12 mm (1/2") wider than pull-out
> D × H: 524 × 109 mm (20 5/8" × 4 5/16")

→ Arena Plus Tray

Width maple/ maple/ white/
champagne chrome chrome
251 (9 7/8") 547.12.821 547.12.121 547.12.221
281 (11 1/16") 547.12.801 547.12.101 547.12.201
305 (12") 547.12.811 547.12.111 547.12.211
327 (12 7/8") 547.12.822 547.12.122 547.12.222
357 (14 1/16") 547.12.802 547.12.102 547.12.202
381 (15") 547.12.812 547.12.112 547.12.212
404 (15 7/8") 547.12.823 547.12.123 547.12.223
433 (17 1/16") 547.12.803 547.12.103 547.12.203
457 (18") 547.12.813 547.12.113 547.12.213
480 (18 7/8") 547.12.824 547.12.124 547.12.224
510 (20 1/16") 547.12.804 547.12.104 547.12.204
534 (21") 547.12.814 547.12.114 547.12.214
min. 555 (21 7/8")

Overlay Frameless Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

min. 555 (21 7/8") min. 555 (21 7/8")

Inset Framed
Overlay Framed
FC 3.66 www.hafele.com/us
