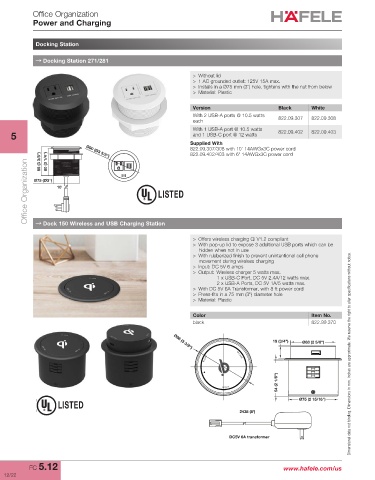

Page 382 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Office Organization
Power and Charging

Docking Station

→ Docking Station 271/281

> Without lid
> 1 AC grounded outlet: 125V 15A max.
> Installs in a Ø75 mm (3") hole, tightens with the nut from below
> Material: Plastic

Version Black White
With 2 USB-A ports @ 10.5 watts
each 822.09.307 822.09.308
With 1 USB-A port @ 10.5 watts 822.09.402 822.09.403
5 and 1 USB-C port @ 12 watts
Supplied With
822.09.307/308 with 10' 14AWGx3C power cord
822.09.402/403 with 6' 14AWGx3C power cord
80 (3 1/4")
85 (3 3/8")
Ø90 (Ø3 5/8")
Office Organization Ø75 (Ø3") 10' ® LISTED

→ Dock 150 Wireless and USB Charging Station

> Offers wireless charging Qi V1.2 compliant
> With pop-up lid to expose 3 additional USB ports which can be
hidden when not in use
> With rubberized finish to prevent unintentional cell phone
movement during wireless charging
> Input: DC 5V 6 amps
> Output: Wireless charger 5 watts max.
1 x USB-C Port, DC 5V 2.4A/12 watts max.
2 x USB-A Ports, DC 5V 1A/5 watts max.
> With DC 5V 6A Transformer, with 8 ft power cord
> Press-fits in a 75 mm (3") diameter hole
> Material: Plastic

Color Item No.
black 822.99.370

19 (3/4") Ø68 (2 5/8")
Ø86 (3 3/8")
DC5V 2.4A Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
DC5V 1A
54 (2 1/8")

DC5V 1A
LISTED Ø75 (2 15/16")
®
2438 (8')

DC5V 6A transformer

FC 5.12 www.hafele.com/us
12/22
